Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619
Model Number:
EB72-30B

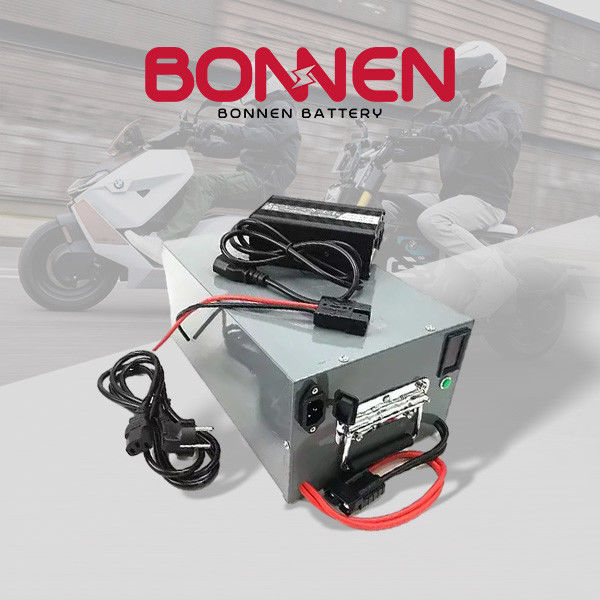

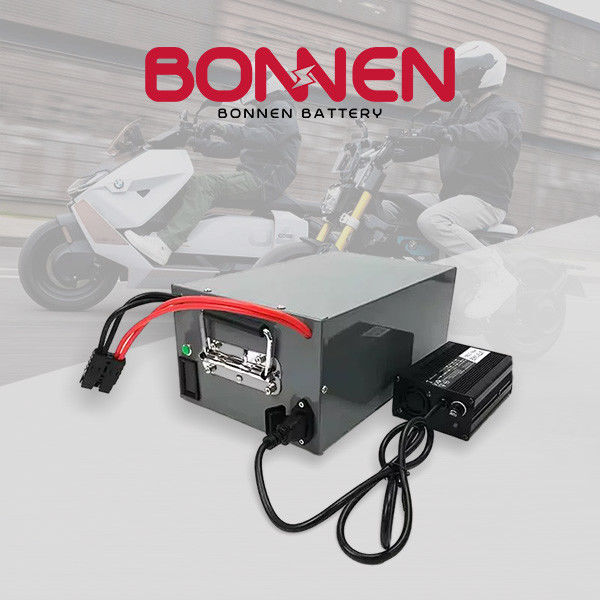

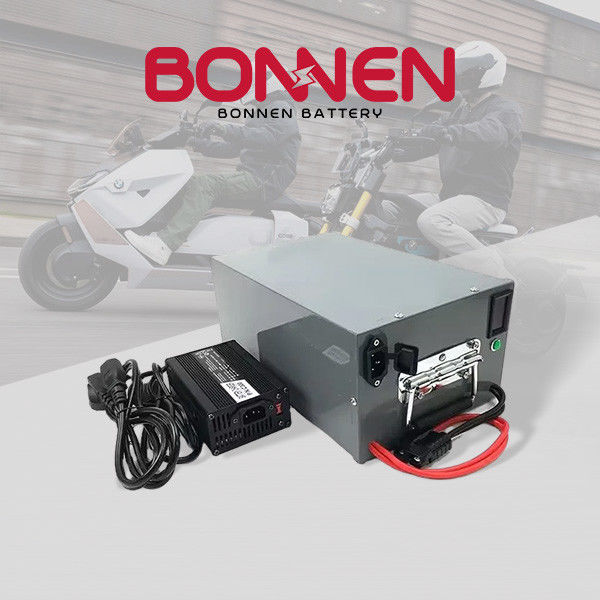

Bonnen 72V 30Ah Lithium Electric Car Battery delivers exceptional reliability and high-performance capabilities for electric vehicles. Providing up to 72 volts and 30 amperes of power, it extends driving ranges per charge, reducing the need for frequent charging. This premium 30Ah lithium electric car battery undergoes rigorous safety testing and is designed for long-lasting durability, ensuring dependable operation over the years with proper maintenance.
Product Features
1. High-Powered Performance: Capable of delivering up to 72 volts and 30 amperes of power, ensuring optimal performance and efficiency for electric vehicles.
2. Extended Driving Range: Offers extended driving ranges on a single charge, providing drivers with the freedom to travel longer distances without the need for frequent recharging.
3. Rigorous Safety Testing: Undergoes stringent safety testing to ensure optimal protection for both the vehicle and its occupants, guaranteeing peace of mind on the road.
4. Long-lasting Durability: Engineered for durability, with a robust design that withstands the rigors of daily use and various driving conditions, promising years of reliable performance.
5. Efficient Energy Usage: Utilizes cutting-edge technology to optimize energy usage, maximizing the battery's efficiency and extending its lifespan.
6. Sustainable Solution: Represents a sustainable and eco-friendly alternative for transportation needs, contributing to a cleaner and greener environment.
Product Specification
| No. | Item Name | Basic Parameter |
| 1 | Cell Type – Chemistry | NCM |
| 2 | Rated Capacity | 30Ah |
| 3 | Rated Voltage | 72V |
| 4 | Energy | 2160Wh |
| 5 | Resistance | 10mΩ |
| 6 | Self Discharge | <1.5% per month |
| 7 | Enclosure Protection | IP65 |
| 8 | Discharge Cut-off Voltage | 60V |
| 9 | Max Continuous Discharging Current | 30A |
| 10 | Peak Discharge Current | 60A for 3 seconds |
| 11 | Recommended Discharge Current | 30A |
| 12 | Charging Limited Voltage | 84V |
| 13 | Max Charging Current | 30A |
| 14 | Recommended Charging Current | 6A |
| 15 | Dimensions | 290*153*153mm |
| 16 | Weight | ≤15kg |
| 17 | Material and Coating of Battery Case | Carbon steel or stainless steel, with powder coating |
| 18 | Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| 19 | Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| 20 | Recommended Storage Temperature & Humidity Range | 15~35℃, 45~75%RH |
Product Benefits
Improved Safety: Rigorously tested for safety, this lithium electric motorcycle battery provides peace of mind for riders, offering reliable protection for both the vehicle and its occupants.
Long-lasting Durability: Engineered for durability, this battery withstands the demands of daily use and various driving conditions, promising years of reliable performance and reducing the need for frequent replacements.
Low Maintenance: Requires minimal maintenance, eliminating the hassle and cost associated with frequent upkeep, and allowing riders to focus more on enjoying their ride.
Eco-Friendly: As a sustainable energy solution, this lithium electric motorcycle battery contributes to a cleaner environment by reducing carbon emissions and reliance on fossil fuels.
Product Applications
Bonnen 72V 30Ah lithium battery is versatile and perfectly suited for a range of electric scooter and moped applications. Specifically designed for compatibility with scooters and mopeds, including popular models like Citycoco, this battery provides reliable power and performance for urban commuting and recreational riding. Whether navigating city streets or cruising through the suburbs, our lithium battery offers a sustainable and efficient energy solution for electric scooters and moped enthusiasts.
Bonnen 48V, 60V and 72V Lithium Battery Applications
Bonnen is a leading manufacturer of lithium batteries, specializing in the production of 48V, 60V, and 72V electric motorcycle lithium batteries. Our high-quality batteries are designed to meet the diverse needs of various applications, including electric scooters, mopeds, electric motorcycles, Citycoco vehicles, electric tricycles, wheelchairs, and more. With a focus on innovation and reliability, Bonnen aims to provide cutting-edge energy storage solutions for electric mobility.
Electric Scooter: As a lithium battery project manager or electric scooter manufacturer, you'll find Bonnen's 48V, 60V, and 72V lithium batteries to be indispensable components for your electric scooter designs. Our batteries offer a perfect balance of power, reliability, and longevity, ensuring smooth and efficient operation for electric scooters in urban environments. With Bonnen batteries, you can confidently create electric scooters that deliver excellent performance, extended range, and enhanced user experience, meeting the demands of modern urban commuters.
Moped: For lithium battery project managers and moped manufacturers, Bonnen's lithium batteries represent the ideal power solution for moped applications. With our range of 48V, 60V, and 72V batteries, you can customize moped designs to meet various performance and range requirements. Bonnen batteries provide the necessary energy density and durability to support moped operations, enabling you to deliver reliable and eco-friendly transportation options for urban commuters and leisure riders alike.
Electric Motorcycle: As a lithium battery project manager or electric motorcycle manufacturer, you'll appreciate the performance and versatility of Bonnen's 48V, 60V, and 72V lithium batteries. Designed to meet the rigorous demands of electric motorcycle applications, our batteries offer high energy density, fast charging capabilities, and long cycle life. With Bonnen batteries powering your electric motorcycles, you can offer riders exhilarating performance, extended range, and emission-free transportation options, catering to both commuting and recreational needs.
Citycoco: Bonnen's lithium batteries are a game-changer for lithium battery project managers and Citycoco manufacturers seeking reliable power solutions. With our 48V, 60V, and 72V battery options, you can design Citycoco electric scooters that excel in urban mobility. Bonnen batteries provide the energy efficiency, compact size, and durability required for Citycoco vehicles to navigate city streets with ease. By incorporating Bonnen batteries into your Citycoco designs, you can offer riders a sustainable and convenient transportation solution that enhances their urban lifestyle.
Electric Tricycle: For lithium battery project managers and electric tricycle manufacturers, Bonnen's lithium batteries offer unmatched performance and reliability. Our 48V, 60V, and 72V batteries are tailor-made to meet the power requirements of electric tricycles used in various urban and commercial applications. Bonnen batteries provide ample energy reserves, rapid charging capabilities, and rugged durability, making them the ideal choice for powering electric tricycles for cargo delivery, passenger transport, and other specialized tasks.
Wheelchair: Bonnen's lithium batteries are a lifeline for lithium battery project managers and wheelchair manufacturers seeking advanced power solutions. With our 48V battery options, you can design electric wheelchairs that offer superior performance and autonomy. Bonnen batteries provide the energy density, reliability, and safety features required for wheelchair users to maintain their independence and mobility. By incorporating Bonnen batteries into your wheelchair designs, you can enhance the quality of life for individuals with mobility challenges, enabling them to navigate their surroundings with confidence and ease.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q: How does Bonnen ensure compatibility with various electric scooter models?
A: Our 48V, 60V, and 72V series boast a compact design tailored to fit most electric scooters, offering versatility and ease of integration for lithium battery project managers.
Q: Can Bonnen's lithium batteries directly replace traditional lead-acid batteries in electric motorcycles?
A: Yes, our lithium batteries are designed for drop-in replacement, offering a seamless upgrade without the need for modifications, enhancing convenience for users.
Q: What benefits do Bonnen's lithium batteries offer in terms of power output?
A: Bonnen's lithium batteries deliver significant power advantages, with large torque enabling effortless climbs and superior performance on various terrains for electric scooters and motorcycles.
Q: How does Bonnen facilitate easy monitoring of battery status?
A: Our lithium batteries feature a built-in LCD display, allowing users to monitor battery status at a glance and plan rides accordingly, enhancing operational efficiency.
Q: What convenience features are incorporated into Bonnen's lithium batteries for electric scooter and motorcycle applications?
A: Bonnen's lithium batteries feature ergonomic handle designs, simplifying battery replacement and enhancing user experience for extended riding pleasure.
Q: What factors contribute to the exceptional durability and longevity of Bonnen's 48V, 60V, and 72V lithium batteries?
A: Bonnen's lithium batteries are constructed using high-quality materials and advanced manufacturing techniques, ensuring robustness and reliability for extended periods of use.
Q: How does Bonnen support cost-effectiveness for lithium battery project managers through its battery solutions?
A: By minimizing the need for frequent battery replacements and offering maintenance-free operation, Bonnen's lithium batteries enhance overall cost-effectiveness for electric scooter and motorcycle applications.
Q: What safety features are integrated into Bonnen's lithium batteries to ensure safe operation?
A: Bonnen prioritizes safety by incorporating features such as overcharge protection, over-discharge protection, and thermal management systems to prevent potential hazards during charging and operation.
Q: Can Bonnen's lithium batteries be customized to meet specific requirements of electric scooter and motorcycle manufacturers?
A: Yes, Bonnen offers customization options to tailor battery specifications such as capacity, voltage, and form factor to suit the unique needs of lithium battery project managers and manufacturers.
Q: Does Bonnen provide technical documentation and support for integrating its lithium batteries into electric scooter and motorcycle designs?
A: Yes, Bonnen offers technical documentation, guidance, and technical support to assist lithium battery project managers in seamlessly integrating our batteries into their products.
Q: How does Bonnen address concerns regarding the weight of its lithium batteries compared to traditional lead-acid components?
A: Bonnen's lithium batteries are significantly lighter than traditional lead-acid batteries, offering improved maneuverability, agility, and efficiency for electric scooter and motorcycle applications.
Q: What measures does Bonnen take to optimize the energy efficiency of its lithium batteries for electric scooter and motorcycle applications?
A: Through advanced cell chemistry, efficient battery management systems, and optimized charging algorithms, Bonnen maximizes energy efficiency and extends the range of electric scooters and motorcycles.
Q: How does Bonnen stay at the forefront of lithium battery technology and innovation to meet the evolving needs of the electric mobility industry?
A: Bonnen invests in research and development to continually improve its battery technology, stay abreast of industry trends, and deliver cutting-edge solutions that exceed the expectations of lithium battery project managers and manufacturers.
