Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619
Model Number:
EV-LFP72-150A

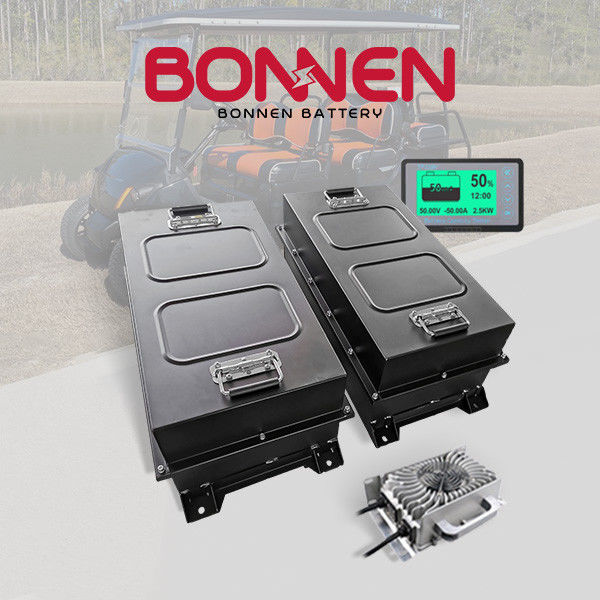

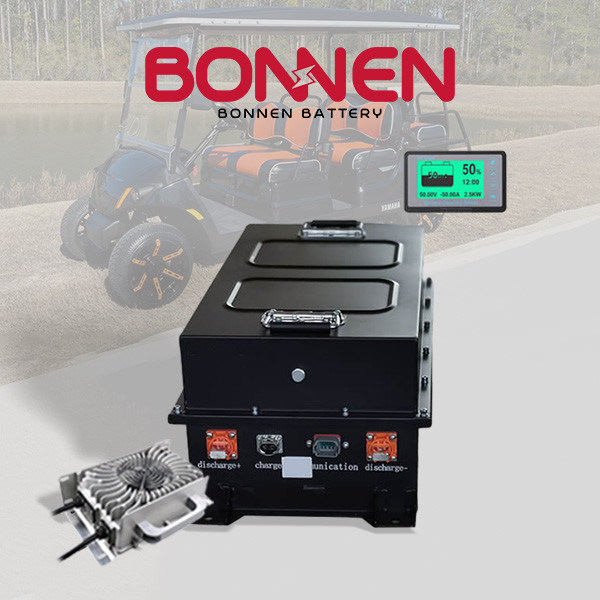

If you're in need of a durable and reliable battery solution, Bonnen Battery's 72V 150Ah golf cart battery is an ideal choice. Engineered for top-tier performance and efficiency, it features a 450A Battery Management System (BMS) and an ample 11kWh capacity. Its zero maintenance, cost-effective operation, and enhanced power capabilities have attracted a wide range of users. Additionally, it eliminates the risks associated with fumes or leaks, ensuring a longer lifespan and reduced energy consumption. With its intelligent battery management system (BMS), it delivers superior stability, power, and comfort. By choosing this battery, you not only improve the performance of your golf cart but also contribute to a more sustainable planet.
Product Features
1. High-Performance Engineering: Bonnen Battery's 72V 150Ah golf cart battery is engineered for top-tier performance and efficiency, ensuring reliable power delivery in various applications.
2. Advanced Battery Management System (BMS): Equipped with a 450A Battery Management System (BMS), this battery ensures optimal performance by monitoring and managing key parameters such as voltage, current, and temperature in real-time.
3. Sufficient Energy Storage: With an abundant 11kWh capacity, this battery ensures ample energy storage for extended usage, enabling users to enjoy uninterrupted power on the golf course or any terrain.
4. Durable Construction: Built with a robust structure, the 72V 150Ah lithium battery ensures durability and resilience, capable of withstanding the rigors of various environments and applications.
5. IP65 Protection Rating: With an IP65 protection rating, this battery offers superior resistance against dust and water ingress, ensuring reliable performance even in harsh and challenging conditions.
6. Enhanced Safety Features: Eliminating the risks associated with fumes or leaks, this battery ensures a longer lifespan and reduced energy consumption, promoting safety and environmental sustainability.
Product Specification
| No. | Item Name | Basic Parameter |
| 1 | Voltage | 73.6V |
| 2 | Battery system whole energy(KWh) | Rated:11kWh |
| 3 | Battery system whole capacity(Ah) | Rated:150Ah |
| 4 | Battery system working temperature | Discharge -20~60℃, |
| Charge 0~60℃ | ||
| 5 | Battery surrounding environment relative humidity | 10%~85% |
| 6 | Battery storage temperature | -20～45℃ |
| 7 | Battery standard charging current(23±2℃) | 75A |
| 8 | Battery Max charging current(23±2℃) | 150A |
| 9 | Battery standard discharging current(23±2℃) | 150A |
| 10 | Battery continuous discharging current(23±2℃) | 225A |
| 11 | Battery discharge peak current(5s)(23±2℃) | 450A |
| 12 | Battery system insulation resistance testing value | ≥20mΩ |
| 13 | Insulation Resistance Testing | ≥20MΩ |
| 14 | Waterproof grade of the battery case | IP65 |
Product Benefits
Reliable Power Delivery: With high-performance engineering, our 72V 150Ah golf cart battery ensures consistent and reliable power delivery in various applications, providing users with the confidence of uninterrupted operation.
Optimal Performance Assurance: Equipped with a 450A Battery Management System (BMS), this battery guarantees optimal performance by continuously monitoring and managing critical parameters such as voltage, current, and temperature in real-time, ensuring efficient energy utilization and extending battery life.
Extended Usage Capability: Featuring an ample 11kWh capacity, our battery provides sufficient energy storage for extended usage, allowing users to enjoy prolonged periods of uninterrupted power on the golf course or any terrain, enhancing overall productivity and convenience.
Hassle-Free Operation: Designed for hassle-free operation, our battery requires zero maintenance, saving users time and effort while ensuring consistent performance over time. This feature minimizes downtime and maintenance costs, providing users with peace of mind and a worry-free experience.
Product Applications
Our 72V 150AH lithium battery is engineered to be the best choice for golf carts, low-speed electric vehicles, and tourist vehicles. With its superior performance and reliability, it ensures a smooth and efficient ride on the golf course or any other terrain. Its high energy density and stable voltage output make it ideal for powering electric vehicles, providing ample power for extended use without compromising performance. Additionally, its lightweight and compact design make it easy to install and integrate into various vehicle models, ensuring seamless operation and enhanced driving experience.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q: What makes the Bonnen lithium golf cart battery durable?
A: The battery is resistant to corrosion, moisture, and extreme temperatures, ensuring enhanced durability and reliability in any environment.
Q: How can users stay informed about their battery's status?
A: Users can monitor the battery's status in real-time through the LCD display, providing peace of mind during golfing adventures.
Q: What advantage does the quiet operation of the battery offer?
A: The quiet operation eliminates noise and vibration, providing a peaceful golfing experience without distractions.
Q: What applications is the Bonnen lithium golf cart battery suitable for?
A: The battery is suitable for golf carts, utility vehicles, industrial equipment, and AGVs.
Q: Can the battery be used with different golf cart brands?
A: Yes, the battery is compatible with various golf cart brands including EZ-GO, Club Car, Yamaha, etc.
Q: How does the battery's lightweight construction benefit users?
A: The lightweight construction makes it easy to install and maneuver, enhancing convenience for users.
Q: Does the battery require any special maintenance?
A: No, the battery is designed for hassle-free operation and does not require any special maintenance.
Q: What safety features does the Bonnen lithium battery include?
A: Equipped with an advanced Battery Management System (BMS), our battery ensures optimal safety by guarding against overcharging, over-discharging, and other potential risks.
Q: Can I easily install the Bonnen lithium battery in my vehicle?
A: Yes, our battery is designed for convenient installation with a user-friendly design, making it easy to replace and integrate into your golf cart or other vehicles.
Q: How does the Bonnen lithium battery contribute to environmental sustainability?
A: As a lithium battery, our product promotes environmental sustainability by reducing carbon emissions and minimizing environmental impact, aligning with eco-conscious practices.
Q: What are the benefits of upgrading to the Bonnen lithium battery?
A: Upgrading to the Bonnen lithium battery offers enhanced performance, reliability, and convenience, ensuring a hassle-free transition to superior power solutions for your vehicle.
Q: How does the Bonnen lithium battery ensure powerful acceleration?
A: Our lithium battery delivers constant power output, ensuring smooth and powerful acceleration at all times, whether navigating flat terrain or ascending hills.
Q: What warranty does the Bonnen lithium battery come with?
A: The Bonnen lithium battery is backed by a 5-year warranty, providing peace of mind against defects and malfunctions, ensuring long-term reliability and durability.
Q: How does the Bonnen lithium battery enhance vehicle performance?
A: Our lithium battery offers a high discharge rate and robust construction, ensuring formidable performance, durability, and resistance to mechanical stresses and impacts, enhancing overall vehicle performance.
Q: What sets the Bonnen lithium battery apart from traditional lead-acid batteries?
A: Unlike traditional lead-acid batteries, our lithium battery offers extended lifespan, higher discharge rates, and minimal maintenance requirements, providing superior performance and efficiency.
Q: Can the Bonnen lithium battery withstand demanding conditions?
A: Yes, our battery is engineered with a secure and sturdy structure to withstand rigorous use and demanding conditions, ensuring reliable power even in challenging environments.
