10Kwh 48v Lifepo4 Powerwall 200Ah Solar Battery Backup System For Home

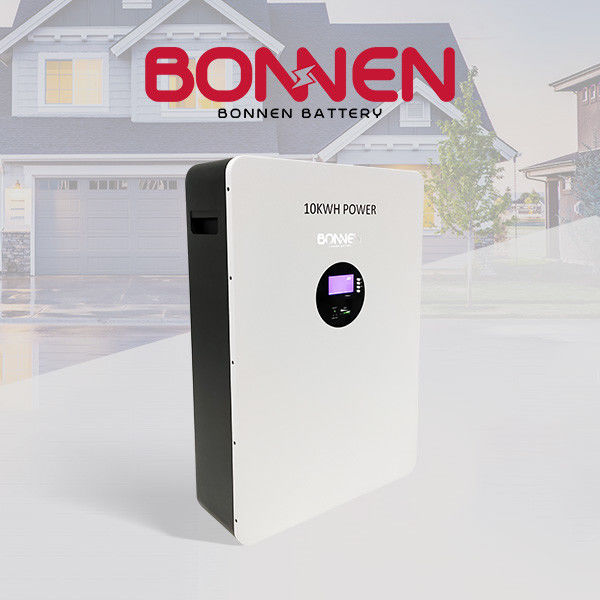

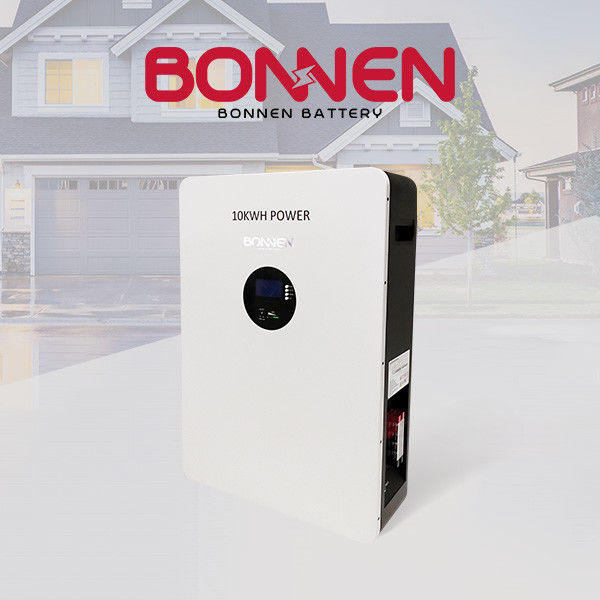

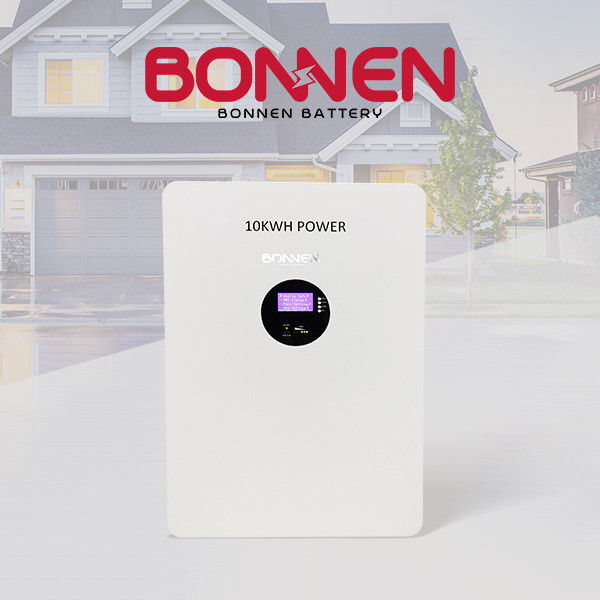

10Kwh 48v Lifepo4 Powerwall 200Ah Solar Battery Backup System For Home

Place of Origin:

China

Brand Name:

Bonnen Battery

Certification:

Compliance with MSDS, UN38.3, CE, CB, IEC 62619

Model Number:

ES-LV10KWH

Contact Us
Request A Quote
Product Details
Voltage:
51.2V
Capacity:
200Ah
Total Energy:
10.24kWh
Battery Chemistry:
LiFePo4 Battery
Battery Cell:
Tier One, A+ CATL/EVE Cell Composition
BMS Safety Features:
Overcharge And Deep Discharge Protection, Voltage And Temperature Observation, Over Current Protection, Cell Monitoring And Balancing, Over-heat Protection
Compatible Inverter Brands:
Compatible With 98% Of Inverter Brands On The Market
Application:
Residential Battery For Solar Energy Storage. Mobile Or Off Grid Applications
Installation Method:
Wall-mounted
DC Coupling:
Yes
Cycle Life:
≥6000 Times
Warranty:
5/10 Years Warranty
Payment & Shipping Terms
Minimum Order Quantity
2 units
Price
Special Offers Available
Packaging Details
wooden case
Delivery Time
30 days
Payment Terms
T/T, L/C, ACH, Fedwire Payment, SEPA Credit Transfer, Electronic Fund Transfer
Supply Ability
5000 units /month
Product Description

Best Solar Battery Backup System For Home 10Kwh Power Wall LiFePo4 48V 200Ah



Product Introduction



The ES-LV10KWH stands as a premier choice for residential solar energy storage. Offering hassle-free maintenance and scalability tailored to your power demands, it's the ultimate solution for powering your entire household. Serving as a reliable backup during outages or to combat soaring electricity costs, this system boasts a 48V 100Ah lithium-ion battery. Utilizing Cobalt-Free LiFePO4 cells, it ensures both safety and environmental friendliness while maintaining charge capacity for up to two decades.



Product Features



1. High Capacity: With a generous 10 kWh capacity, this wall-mounted lithium battery provides ample backup power for extended periods during grid outages.



2. Modular Design: The modular design allows for easy installation and maintenance, ensuring hassle-free operation for years to come.



3. Grid Independence: Achieve greater energy independence by storing excess solar energy generated during the day for use during peak demand periods or at night.



4. Emergency Backup: Ensure uninterrupted power supply during emergencies or blackouts with the reliable performance of this 10 kWh battery.



5. Environmentally Friendly: Reduce your carbon footprint and reliance on fossil fuels by harnessing clean, renewable energy stored in this eco-friendly battery.



6. Enhanced Safety: Built-in safety features and robust construction ensure the highest level of protection against potential hazards, providing peace of mind for you and your family.



10Kwh 48v Lifepo4 Powerwall 200Ah Solar Battery Backup System For Home 0



Product Specification



No. Item Name Basic Parameter
1 Nominal voltage[V] 51.2
2 Capacity [C/5][Ah] 200
3 Energy[ C/5][WH] 10240
4 Dimension W525×H748×D178mm
5 Weight[kg] 110
Electric characteristic
6 Work Voltage Range[V] 40~58.4
7 Standard Charge Current 50A
8 Max Charge Current 100A
9 Max Discharge Current 100A
Operating conditions
10 Lifetime @+25℃ >10 years
11 Cycle life (0.5C charge ,0.5C discharge)80%DOD;±25℃ ≥ 6000
12 Operating temperature Charge :0~45℃;
Discharge:-20~60℃;
13 Storage temperature -10℃~45
(<1months,20%~60%SOC);
-10℃~25
(<3months,30%~60%SOC);
14 EMC standard compliance EN 61000 chapter
15 Communication Mode RS485/CAN



Product Benefits



Ample Energy Storage: With a generous 10 kWh capacity, the ES-LV10KWH provides extended backup power during grid outages, ensuring uninterrupted operation of essential appliances and devices.



Cost-effective Energy Solutions: By maximizing energy self-consumption, homeowners can reduce electricity expenses and take advantage of net-metering policies, potentially earning credits by selling excess energy back to the grid.



Reliable Emergency Backup: During emergencies or natural disasters, the ES-LV10KWH serves as a reliable backup power source, ensuring essential loads remain powered for extended durations.



Scalable and Adaptive: The ES-LV10KWH can be seamlessly integrated with renewable energy sources and scaled up to meet evolving energy needs, providing a future-proof energy solution for homeowners.



Inverter Compatibility



Are you a distributor or installer of inverters in need of a top-quality LiFePO4 solar battery solution to fulfill your customers' requirements? Your search ends here with Bonnen Battery, the premier supplier of advanced energy storage systems!



10Kwh 48v Lifepo4 Powerwall 200Ah Solar Battery Backup System For Home 1

Product Applications



The ES-LV10KWH is a solar wall battery with a large capacity of 10kWh and is the perfect alternative to the Tesla Powerwall, providing more autonomy for your home. It is compatible with the leading brands inverters like Sermatec, Fronius, Goodwe, Voltronic Power, SAJ, INVT, Victron Energy, East, Solar Edge, Sofar Solar, Solis, SMA, Kstar, SOL-ARK, MEGAREVO etc. on the market.



10Kwh 48v Lifepo4 Powerwall 200Ah Solar Battery Backup System For Home 2



FAQ

Q: What are home energy storage systems?
A: Home energy storage systems are gaining popularity as battery and solar panel costs decrease. Typically, these systems include photovoltaic systems, batteries, and inverters. The photovoltaic system generates electricity from sunlight, stored in batteries. Inverters convert stored DC electricity into AC electricity for home use. These systems offer advantages like generating your own electricity, reducing reliance on the grid, and saving on energy bills.



Q: Bonnen home energy storage technical specifications.
A: Bonnen provides two types of residential energy storage systems. Our first option offers either wall-mounted or stand-mounted batteries with capacities of 5.12kWh and 10.24kWh, typically compatible with inverters ranging from 3KW to 7KW. You have the flexibility to choose your preferred inverter brand, or alternatively, you can opt to purchase home batteries separately.
Additionally, we provide an all-in-one stack system. Bonnen has developed both low-voltage and high-voltage stack systems, allowing buyers to select the desired voltage and power. The modular design of the high-voltage battery system enables stacking of 3 to 7 battery modules, with capacities ranging from 15.36 KWH to 35.84 KWH and voltages from 153.6V to 358.4V. This system is equipped with an output inverter rated between 8KW to 12KW.



Q: What does a bonnen home energy storage battery do?
A: A Bonnen Home Energy Storage System (HESS) serves multiple purposes. It stores solar energy generated during the day for nighttime use, ensuring continuous power supply. Additionally, it acts as a backup power source during grid outages. Depending on your location and local electricity rates, the home battery can potentially save you money by allowing you to shift energy consumption from high-rate to low-rate periods. Lastly, it empowers you to take control of your energy usage and achieve self-sufficiency from the grid.


Q: Can I determine the charging priorities for my home energy storage battery?
A: Yes, you have the option to set charging priorities based on your preferences:
Self-Powered: Utilize the stored energy from your solar system to power your home after sunset.
Backup Only: Reserve all the energy in your home battery for emergency backup power during periods of low or no sunlight.
Balanced Time-Based Control: Power your home after sunset while avoiding costly on-peak electricity rates by utilizing the electricity stored in your solar system.



Q: Is solar panel installation required to use the Bonnen home energy storage system?
A: No, it is not necessary to have PV/solar panels to operate the Bonnen Home Energy Storage System. The home energy storage battery, also known as Powerwall, can be charged using AC power from the grid or a generator. Bonnen offers an all-in-one package that includes household batteries and inverter systems, with the option to include solar photovoltaic systems upon request. Solar panels can be used for load transfer or as a standby power supply, but they are not mandatory for the operation of the system.



Q: Where should I install the home battery energy storage?
A: Typically, the home battery energy storage is installed either outdoors or in a utility room such as a garage or basement. Factors to consider include heat dissipation, ventilation requirements, avoiding direct sunlight exposure, and protection against water exposure.



Q: How does a home battery connect to my home?
A: Prior to connecting a battery to the grid, it's important to install a separate AC breaker between the inverter and the AC input power source. This ensures that the inverter can be safely disconnected during maintenance and is fully protected from overcurrent. For hybrid-coupled homes, before making connections to the Grid, Load, and Gen ports, ensure that the AC breaker or disconnector is turned off.



Q: What's the difference between single-phase and three-phase electricity?
A: Single-phase electricity, typically found in households, operates at either 230 or 240 volts, while three-phase electricity is commonly used in commercial and industrial settings and operates at either 400 or 415 volts. One notable distinction between single-phase and three-phase electricity is the power transmission capacity. Three-phase electricity can transmit more power than single-phase electricity, making it suitable for high-powered applications. Additionally, three-phase electricity tends to experience fewer power fluctuations compared to single-phase electricity.



Q: Which is better for my home solar system: single-phase or three-phase?
A: Single-phase systems are typically preferred for residential homes, whereas three-phase systems are commonly used in commercial and industrial environments. If you're uncertain about the phase of your system, you can usually locate this information on your electrical panel.



Q: How much power do I need for my home battery energy storage?
A: We recommend selecting only essential appliances to be connected to the battery, such as a refrigerator, a few phone charging sockets, lights, and the wifi system. During a complete blackout, a typical 10 kWh battery can provide power for approximately 10 to 12 hours, depending on the load it is supporting. For instance, a 10 kWh battery can run a refrigerator for 14 hours, a television for 130 hours, or a single LED light bulb for 1,000 hours. Therefore, many households opt for a battery with a storage capacity of 10 kilowatt-hours. Before purchasing a battery storage system, it is crucial to discuss your requirements with our system designer.



Q: How long does a home energy storage battery last on one charge?
A: The duration of a home energy storage battery's charge depends on your electricity usage. The more household appliances in use, the shorter the battery's lifespan on a single charge. For example, with basic consumption and lighting, a battery may last approximately 12 hours. Bonnen engineers will design and calculate the battery capacity based on your historical electricity consumption data.



Q: How long will it take to fully charge my home energy storage battery?
A: The time it takes to fully charge your home energy storage battery depends on various factors such as sunlight duration, brightness, shading, outside temperature, etc.



Q: Does my home energy storage system automatically switch on during grid failure?
A: Yes, the Bonnen Home Energy Storage System will automatically switch to battery power in the event of a grid failure.



Q: How long do batteries last?
A: Lithium-ion batteries typically endure around 6000 cycles (charges/discharges) at an 80 percent discharge rate, translating to an expected lifespan of over 10 years for high-performance systems if cycled once per day. Bonnen LiFePO4 batteries are designed to last over 15 years.



Q: What is the minimum order quantity (MOQ) for bonnen?
A: In fact, there is no minimum order quantity for Bonnen home energy storage systems. Bonnen welcomes distributors, resellers, PV installers, and system contractors as its target customers. Even a single sample order is welcomed. Let Bonnen assist in expanding the ESS market and enhancing your profitability!
