Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62133
Model Number:
ESS-100-215 Air Cooling

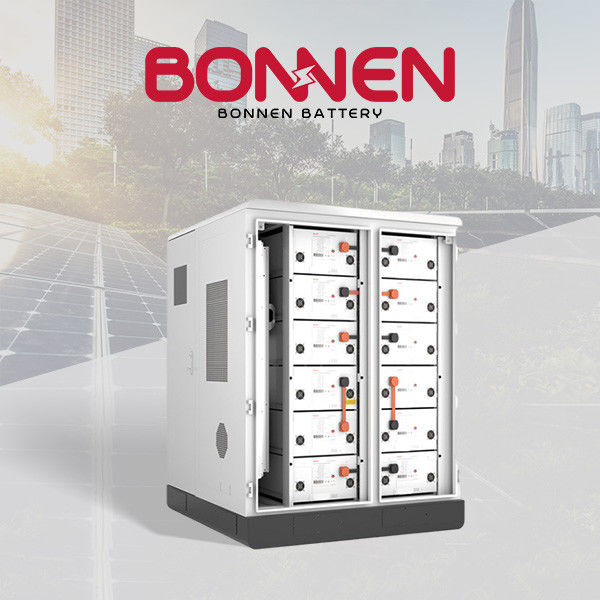

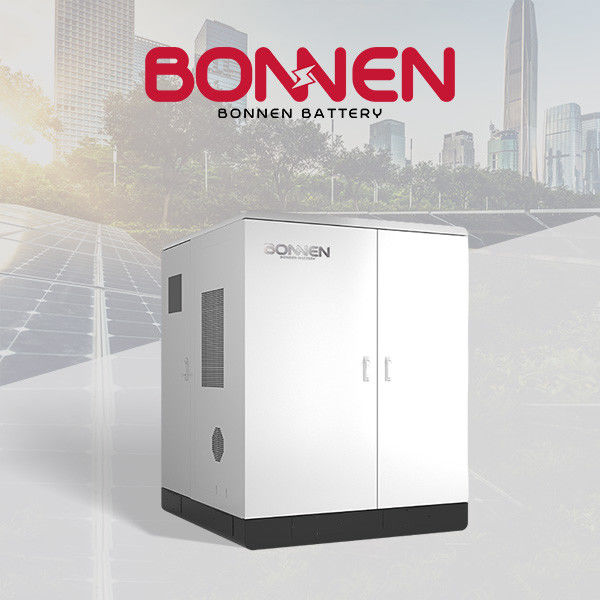

Industrial Battery Storage 215kWh System
Bonnen ESS-100-215 commercial and industrial photovoltaic energy storage system integrates a 60KW MPPT controller module, a 100KW PCS (Power Conversion System), and a 240KW STS (Smart Static Switching) module, along with a 215kWh LiFePO4 energy storage system. It features an advanced air conditioning system for precise temperature control within the storage cabinet. Additionally, it incorporates a gas-based fire suppression system, temperature/humidity sensors, water intrusion sensors, BMS (Battery Management System), and EMS (Energy Management System). Furthermore, it includes an independent UPS (Uninterruptible Power Supply) to ensure continuous operation of the EMS during power outages, enabling users to monitor system faults seamlessly even in emergencies.
Product Features
1. Robust Protection Performance: Bonnen ESS-100-215 by Bonnen offers highly reliable protection, ensuring optimal performance even in challenging environments with its wide operating temperature range, making it ideal for diverse industrial and commercial applications.
2. Versatile Operating Modes: With constant voltage, constant current, and constant power modes, this energy storage system supports both grid-connected and off-grid operations, providing flexibility and adaptability to varying energy demands.
3. Advanced Compensation Functions: Equipped with reactive power and harmonic compensation capabilities, the ESS-100-215 exhibits excellent load adaptability and grid adaptability, ensuring stable and efficient energy management in complex electrical environments.
4. Balanced Load Distribution: Featuring 100% three-phase unbalanced loading and support for single-phase load connection, this system allows for flexible load configuration, optimizing energy distribution according to specific requirements.
5. Safe and Long-lasting Battery Technology: Utilizing lithium iron phosphate batteries, the ESS-100-215 ensures safety and reliability while delivering an extended lifespan of over 6000 cycles at 25°C with a depth of discharge (DOD) exceeding 80%, minimizing maintenance needs and maximizing return on investment.
6. Enhanced Efficiency: With its advanced features and robust design, the ESS-100-215 offers enhanced energy efficiency, helping businesses optimize their energy usage, reduce costs, and achieve greater sustainability in their operations.
Product Specification
| No. | Item Name | Basic Parameter |
| System Parameters | ||
| 1 | Rated Capacity | 215kWh 0.5C@25℃ |
| 2 | Products Size(W*D*H) | 1620*1500*1900mm |
| 3 | Products Weight | 3.1T |
| 4 | Battery Voltage | 768V |
| 5 | Battery Voltage Range | 672V-876V |
| 6 | Max Dis/Charge Power | 100kW |
| 7 | Operate Altitude | <2000M |
| 8 | Cooling System | Industrial Air Conditioning |
| 9 | ON-Grid/Off-Grid Mode | Manual/Automatic(Optional) |
| 10 | Grid Type | 3P+N+PE |
| 11 | Fire Extinguishing System | Aerosols |
| 12 | IP Grade | IP54 |
| 13 | Operate Temperature | -15℃~50℃(＞45℃ Quota reduction) |
| 14 | Communication Protocal | Modbus-TCP/Modbus-RTU |
| 15 | Unbalanced 3phase Load Capacity | 100% |
| ON -Grid Parameters | ||
| 1 | Rated Voltage | 230Vac/400Vac |
| 2 | Voltage Range | -15%~10% |
| 3 | Rated Frequency | 50HZ/60HZ |
| 4 | Max ON-Grid Power | 100kW |
| 5 | Max Output Current | 150A(150*380*1.732=100kw) |
| 6 | THDi | ＜3%(Rated Output Power) |
| OFF-Grid Parameters (Automatic bypass requires configuring an STS) |
||
| 1 | Rated Voltage | 230Vac/400Vac |
| 2 | OFF-Grid Parameters | 1% |
| 3 | Max Output Current | 150A(150*380*1.732=100kw) |
| 4 | THDv | ＜1%(Linear load) |
| 5 | Rated Frequency | 50HZ/60HZ |
| 6 | Over Load Capacity | 110% 10min;120% 1Min @35℃ |
| Battery Pack | ||
| 1 | Battery Cell | Lithium Iron Phosphate(cobalt-free)-LiFeP04 |
| 2 | Battery Cluster | 15units in series@768V/215kWh |
| 3 | Battery Module | 51.2V/280Ah/14.33kWh(1P16S) |
| 4 | Cycle Life | ＞6000times @25℃&0.5C |
| 5 | Standards | GB/T 36276,IEC62619,UN38.3 |
Product Benefits
Safety Assurance: Bonnen's THREE PHASE 100KW/215KWH System prioritizes safety with a dedicated industrial precision air conditioning system, ensuring consistent temperature and humidity control within the energy storage cabinet, safeguarding sensitive components and minimizing risks of overheating or moisture damage.
Simplified Installation: Featuring a three-phase four-wire design, this system eliminates the need for additional transformer configurations, streamlining the installation process and reducing complexity, making it easier and more cost-effective to integrate into existing infrastructure.
Enhanced Efficiency: With a peak conversion efficiency of over 98.5% for the MPPT module and MPPT efficiency exceeding 99.9%, Bonnen's system maximizes energy conversion rates, minimizing losses and optimizing overall system performance, resulting in lower operating costs and improved energy utilization.
Intelligent Operation: The PCS, MPPT, and STS components are equipped with multi-dimensional intelligent fan regulation functions, intelligently adjusting fan speeds to optimize energy consumption and reduce noise levels throughout the system, ensuring efficient and quiet operation in various operating conditions.
Product Applications
Bonnen's Three Phase 100KW/215KWH System offers versatile applications tailored to various electricity pricing models and operational management modes, including general, micro-grid, and backup power configurations. Its flexibility allows integration into different settings, ensuring efficient energy management and cost optimization. Additionally, users can conveniently monitor system operation information and receive notifications through a dedicated mobile app, enhancing accessibility and ease of management. Whether deployed in industrial facilities, commercial buildings, or utility-scale installations, Bonnen's energy storage system empowers users to achieve greater control and efficiency in their energy usage, contributing to sustainability and profitability.
Manufacturing Facilities: Bonnen Energy storage can be used in manufacturing facilities to manage energy demand spikes during production processes, thus reducing electricity costs associated with peak demand charges.
Data Centers: Data centers require continuous power to maintain operations. Bonnen Energy storage systems can provide backup power during grid outages or fluctuations, ensuring uninterrupted data processing and storage.
Commercial Buildings: Bonnen Energy storage in commercial buildings can be used for load shifting to reduce electricity costs during peak demand periods, as well as for backup power to support critical systems like elevators and security systems.
Warehouses and Distribution Centers: Bonnen Energy storage can help these facilities manage energy demand during peak operation hours, optimizing energy use and reducing electricity expenses.
Renewable Energy Integration: Commercial and industrial facilities with onsite renewable energy generation, such as solar panels, can use Bonnen energy storage to store excess energy for later use or to smooth out fluctuations in generation.
Retail Stores: Retailers can use Bonnen energy storage systems to reduce electricity costs by shifting energy consumption away from peak demand periods and ensuring a stable power supply for lighting, refrigeration, and other operational needs.
Hotel and Hospitality Industry: Bonnen Energy storage can help hotels manage energy demand for heating, cooling, and other services, improving energy efficiency and reducing utility expenses.
Entertainment Venues: Stadiums, theaters, and other entertainment venues can benefit from Bonnen energy storage to manage peak demand during events and ensure uninterrupted operation of lighting, sound systems, and other equipment.
Farming and Agriculture: Bonnen Energy storage systems can be used in agricultural operations to power irrigation systems, livestock facilities, and other equipment, providing reliable energy supply even in remote locations.
FAQ
Q: What is the Bonnen Energy Storage System for Industrial & Commercial sectors?
A: The Bonnen Energy Storage System integrates renewable energy with advanced storage and cloud computing technologies, tailored to provide efficient, reliable, and sustainable energy solutions for industrial and commercial users.
Q: How does the modular design of the Bonnen Energy Storage System benefit users?
A: The modular design allows for limitless parallel combinations, enabling efficient and flexible adaptation to varying energy storage needs.
Q: Can the Bonnen Energy Storage System be tailored to specific requirements?
A: Yes, the system offers customizable options to meet specific energy storage needs, ensuring seamless integration into diverse applications.
Q: In what applications can the Bonnen Energy Storage System be utilized?
A: Bonnen Energy Storage System is suitable for a wide range of applications, including hotels, island microgrids, energy storage stations, factories, data centers, commercial buildings, warehouses, distribution centers, retail stores, entertainment venues, and agricultural operations.
Q: How can farming and agriculture operations benefit from the Bonnen Energy Storage System?
A: The system can power irrigation systems, livestock facilities, and other equipment, providing reliable energy supply even in remote locations.
Q: Can businesses rely on Bonnen for comprehensive technical expertise and support?
A: Yes, with direct manufacturer sales, businesses benefit from competitive pricing, reliable support, and access to comprehensive technical expertise throughout the product's lifecycle.
Q: Can Bonnen energy storage systems be integrated with renewable energy sources?
A: Yes, Bonnen energy storage systems can store excess energy generated from renewable sources such as solar and wind for use when renewable generation is low or during peak demand periods.
Q: Can Bonnen energy storage systems be scaled to meet the needs of large industrial facilities?
A: Yes, Bonnen energy storage systems can be scaled to meet the energy demands of large industrial facilities by adding additional storage capacity as needed.
Q: Can Bonnen energy storage systems be used for off-grid applications?
A: Yes, Bonnen energy storage systems can be used for off-grid applications to provide reliable power in remote locations or areas with unreliable grid infrastructure.
Q: Do Bonnen energy storage systems require regular maintenance?
A: Yes, Bonnen energy storage systems typically require regular maintenance to ensure optimal performance and longevity, including monitoring battery health, checking connections, and performing software updates.
Q: Can Bonnen energy storage systems be remotely monitored and controlled?
A: Yes, Bonnen energy storage systems are equipped with monitoring and control capabilities that allow businesses to remotely monitor performance, adjust settings, and receive alerts for maintenance or issues.
