Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62133
Model Number:
ESS-100-200kWh

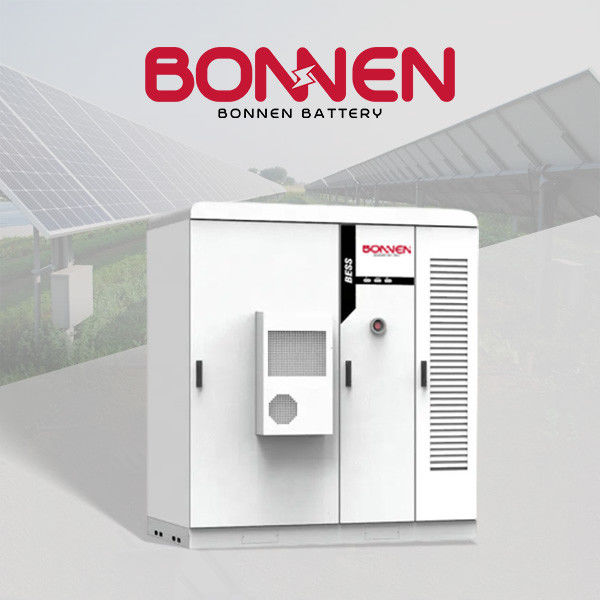

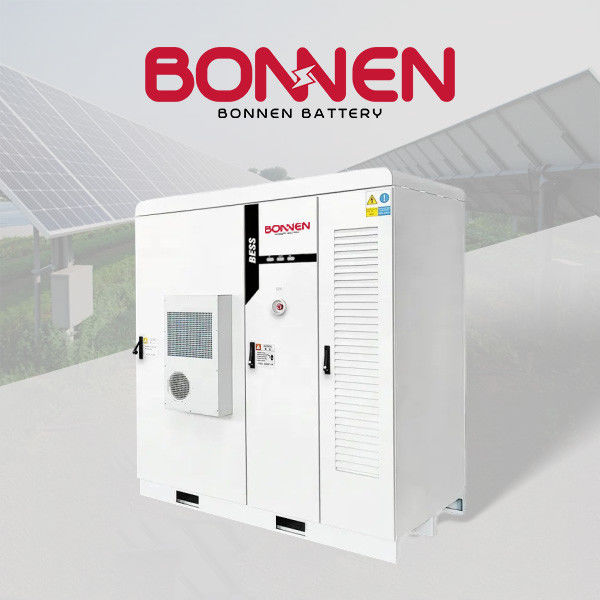

Commercial Battery Storage 100Kw/200Kwh Battery Cabinet, LiFePo4 Battery Energy Storage System BESS For Small-Scale Commercial
This LiFePO4 battery system is tailored for high voltage (HV) power conversion systems (PCS), boasting a nominal voltage of 768V. It incorporates 280Ah Prismatic LiFePo4 battery cells arranged in a configuration of 240S 1P, resulting in each battery module having a voltage of 76.8V and a capacity of 280Ah (24S1P). Each battery rack comprises 10 battery modules connected in series. Additionally, the system features a built-in high voltage combiner box to achieve a total voltage of 768V and a rated energy capacity of 215kWh. This 768V 280Ah Energy Storage Battery System is well-suited for small-scale commercial applications, both off-grid and on-grid.
The system boasts a modular design, allowing for seamless adaptation to various industrial and commercial environments. Its parallel connection capability facilitates easy capacity expansion up to a megawatt level to meet increasing energy demands.
With an emphasis on safety and reliability, the system incorporates an efficient thermal management design, ensuring optimal performance even in challenging conditions. With an IP55 protection rating, it is suitable for outdoor installations, offering resilience against environmental elements.
Product Features
1. High Voltage Compatibility: The ESS100-200KWH system is specifically tailored for high voltage (HV) power conversion systems (PCS), boasting a nominal voltage of 768V, ensuring compatibility with HV applications.
2. Proven LiFePO4 Chemistry: Utilizing proven LiFePO4 chemistry, the system ensures good consistency and superior charging and discharging performance, guaranteeing reliable energy storage operations.
3. Modular Design: The system features a modular design, enabling seamless adaptation to various industrial and commercial environments, enhancing flexibility and scalability to meet specific energy storage needs.
4. Parallel Connection Capability: With parallel connection capability, the system facilitates easy capacity expansion up to a megawatt level, allowing businesses to scale up their energy storage capacity to meet growing energy demands effectively.
5. Emphasis on Safety and Reliability: Designed with an emphasis on safety and reliability, the system incorporates an efficient thermal management design, ensuring optimal performance even in challenging conditions, thus enhancing operational reliability.
6. Outdoor Resilience: With an IP55 protection rating, the system is suitable for outdoor installations, offering resilience against environmental elements and ensuring durable and dependable operation in various outdoor settings.
Product Specification
| ITEM | TECHNICAL PARAMETERS |
| The Machine Parameters | |
| Battery Type | Lithium Iron Phosphate Battery (LiFePO4) |
| Nominal Voltage | 768V |
| Nominal Capacity | 280Ah |
| Rated Reserved Energy | 215KWh |
| Size | 1600*1400*2100mm |
| Weight | 2610kg |
| Maximum Charging Current | 150A |
| Maximum Discharging Current | 150A |
| Charge Cut-off Voltage | 600~650V |
| Discharge Cut-off Voltage | 850~876V |
| Number of Battery Module Per Cabinet | 10pcs |
| Number of Battery Cells Per Module | 24pcs |
| Operation Temperature Range (Charge) | 0℃~+45℃ |
| Operation Temperature Range (Discharge) | -10℃~+60℃ |
| Protection Function | Over-current/ Over-voltage/ Under-voltage/ Short Circuit/ Temperature Protection |
| Protection Grade | IP54 |
| Communication Interface | RS485, CAN |
| 76.8V 280Ah Battery Module Parameters | |
| Configuration | 24S1P |
| Nominal Capacity | 280Ah |
| Rated Voltage | 76.8V |
| Maximum Charging Current | 150A |
| Maximum Discharging Current | 150A |
| Charge Cut-off Voltage | 87.6V |
| Discharge Cut-off Voltage | 60V |
| Operation Temperature Range (Charge) | 0℃~+45℃ |
| Operation Temperature Range (Discharge) | -10℃~+60℃ |
| Storage Temperature | 0℃~+40℃ |
| Storage Humidity | ≤ 90% |
| CBMS Main Technical Parameters | |
| Communication Interface with PCS | RS485/CAN |
| Communication Interface with BMU | CAN |
| Maximum Quantity of BMUs | 13 |
| Power | 24VDC (18V~28V) |
Product Benefits
Enhanced Energy Efficiency: The ESS-100-200kWh commercial battery system integrates both an energy storage converter and a PV converter, enabling efficient electricity generation through photovoltaic (PV) technology. By directly connecting to PV solar panels, it prioritizes battery charging while converting PV current output into grid-compatible power, optimizing energy utilization and reducing dependency on traditional grid sources.
Scalable Capacity: Featuring a modular design, the system allows for easy adaptation to various industrial and commercial settings. Its parallel connection capability enables straightforward capacity expansion up to a megawatt level, providing businesses with the flexibility to scale up their energy storage capacity to meet evolving energy demands efficiently.
Enhanced Safety and Reliability: With an efficient thermal management design and an IP55 protection grade, the ESS-100-200kWh system ensures safety and reliability even in demanding environmental conditions. This robust construction makes it suitable for outdoor installations, providing resilience against environmental elements and ensuring uninterrupted operation.
Intelligent Energy Management: Equipped with a built-in Energy Management System (EMS), the ESS-100-200kWh system supports multiple operating modes and enables seamless switching to power supply by the converter. This intelligent management system enhances energy optimization and ensures continuous energy availability, contributing to enhanced operational efficiency and reliability.
Product Applications
The ESS100-200KWH commercial and industrial energy storage product is versatile in its application:
Small-scale Commercial Applications: It is ideal for small-scale commercial settings, offering reliable energy storage solutions for various businesses and enterprises.
Off-grid Applications: The system is well-suited for off-grid scenarios where reliable energy storage is essential for powering remote or isolated locations without access to the main electrical grid.
On-grid Applications: In addition to off-grid applications, the system can seamlessly integrate with existing grid infrastructure, providing supplementary power and enhancing energy reliability for businesses connected to the grid.
Overall, the ESS100-200KWH energy storage product is adaptable to a wide range of commercial and industrial settings, offering reliable and efficient energy storage solutions for both off-grid and on-grid applications.
FAQ
Q: What is the Bonnen Energy Storage System for Industrial & Commercial sectors?
A: The Bonnen Energy Storage System integrates renewable energy with advanced storage and cloud computing technologies, tailored to provide efficient, reliable, and sustainable energy solutions for industrial and commercial users.
Q: How does the modular design of the Bonnen Energy Storage System benefit users?
A: The modular design allows for limitless parallel combinations, enabling efficient and flexible adaptation to varying energy storage needs.
Q: Can the Bonnen Energy Storage System be tailored to specific requirements?
A: Yes, the system offers customizable options to meet specific energy storage needs, ensuring seamless integration into diverse applications.
Q: In what applications can the Bonnen Energy Storage System be utilized?
A: Bonnen Energy Storage System is suitable for a wide range of applications, including hotels, island microgrids, energy storage stations, factories, data centers, commercial buildings, warehouses, distribution centers, retail stores, entertainment venues, and agricultural operations.
Q: How can farming and agriculture operations benefit from the Bonnen Energy Storage System?
A: The system can power irrigation systems, livestock facilities, and other equipment, providing reliable energy supply even in remote locations.
Q: Can businesses rely on Bonnen for comprehensive technical expertise and support?
A: Yes, with direct manufacturer sales, businesses benefit from competitive pricing, reliable support, and access to comprehensive technical expertise throughout the product's lifecycle.
Q: Can Bonnen energy storage systems be integrated with renewable energy sources?
A: Yes, Bonnen energy storage systems can store excess energy generated from renewable sources such as solar and wind for use when renewable generation is low or during peak demand periods.
Q: Can Bonnen energy storage systems be scaled to meet the needs of large industrial facilities?
A: Yes, Bonnen energy storage systems can be scaled to meet the energy demands of large industrial facilities by adding additional storage capacity as needed.
Q: Can Bonnen energy storage systems be used for off-grid applications?
A: Yes, Bonnen energy storage systems can be used for off-grid applications to provide reliable power in remote locations or areas with unreliable grid infrastructure.
Q: Do Bonnen energy storage systems require regular maintenance?
A: Yes, Bonnen energy storage systems typically require regular maintenance to ensure optimal performance and longevity, including monitoring battery health, checking connections, and performing software updates.
Q: Can Bonnen energy storage systems be remotely monitored and controlled?
A: Yes, Bonnen energy storage systems are equipped with monitoring and control capabilities that allow businesses to remotely monitor performance, adjust settings, and receive alerts for maintenance or issues.
