Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619, ECE-R100
Model Number:
BN96-60

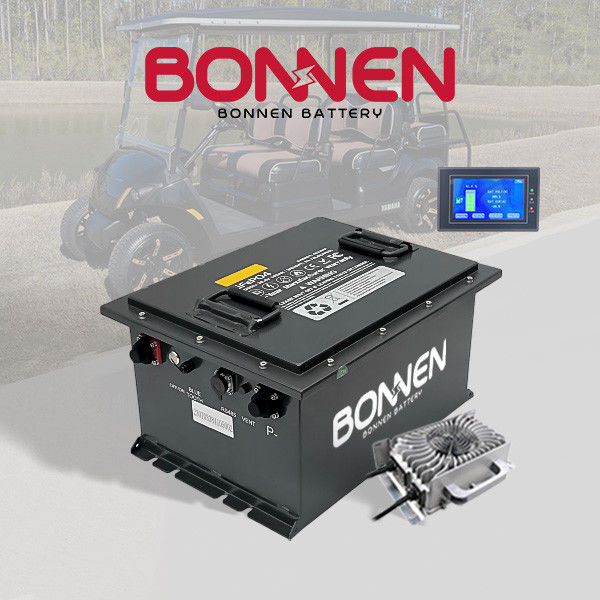

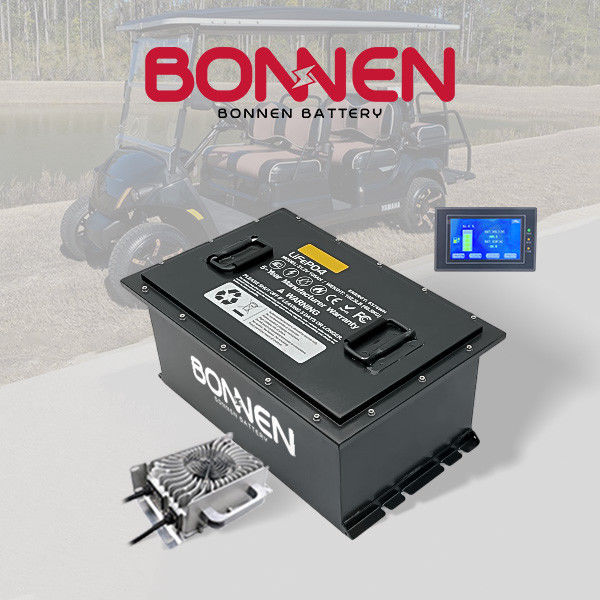

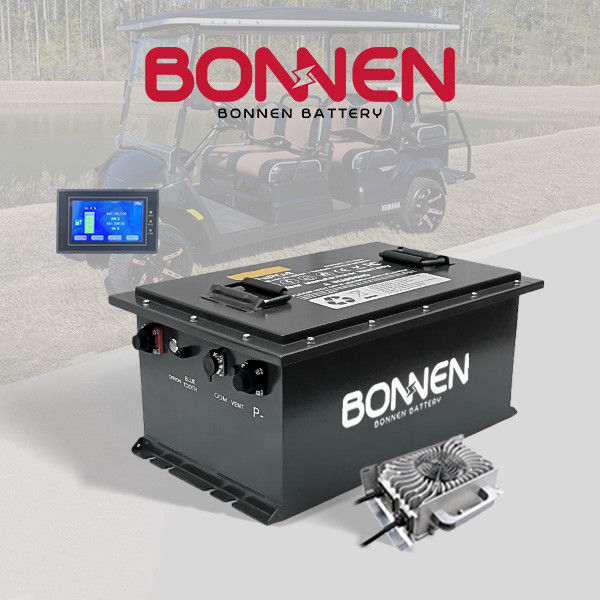

The 96V 60Ah LiFePO4 battery pack is designed for optimal performance and safety. With its LiFePO4 chemistry and built-in Battery Management System (BMS), safety is ensured. It offers over 4000 cycles, surpassing lead-acid batteries by 6-8 times. Despite being compact and lightweight, it maintains deep cycle capability and high efficiency. It performs exceptionally well in high temperatures and boasts a low self-discharge rate of < 3% per month, making it perfect for extended storage. In conclusion, it serves as the ultimate solution for electric vehicles and renewable energy systems, providing reliability, efficiency, and versatility.
Product Features
1. Safety Performance: Utilizes the safest Lithium Iron Phosphate (LiFePO4) battery and includes a built-in Battery Management System (BMS) for enhanced safety and protection.
2. Long Cycle Life: Provides over 4000 cycles, offering 6-8 times longer lifespan compared to traditional lead-acid batteries, ensuring longevity and cost-effectiveness.
3. Deep Cycle Capability: Offers deep discharge cycles without experiencing memory effect, ensuring consistent and reliable performance throughout its lifespan, while maintaining high efficiency.
4. Compact Size and Lightweight: Remarkably compact and lightweight, occupying only half the size and weight of equivalent lead-acid batteries, enabling easier installation and handling without compromising performance.
5. High Temperature Performance: Demonstrates excellent performance even under high-temperature conditions, ensuring reliability and efficiency in various operating environments.
6. Low Self-Discharge Rate: Maintains a low self-discharge rate of less than 3% per month, allowing for longer storage periods without significant loss of charge, ideal for intermittent or standby power applications.
Product Specification
| Nominal voltage | 96V |
| Capacity (Ah) | 60Ah |
| Battery Energy | 5760Wh |
| Self-discharge | 25℃,≤3% per month |
| Cycle life | >4000 cycles |
| Charge Mode | CC/CV |
| Max. Continuous Charge Current | 30A |
| Charge Cut-off Voltage | 109.5V |
| Max. Continuous Discharge Current | 60A |
| Max. Pulse Current | 180A 30S |
| Discharge Cut-off Voltage | 75V |
| Communication mode | RS485/CAN |
| Storage temperature | 0~45℃ |
| Working Environment | 0℃~+55℃(Charge) |
| -20℃~+65℃(Discharge) | |
| Water Dust Resistance | IP67 |
| Housing Material | Metal case |
| Bluetooth 5.0 | yes |
| GPS Feature | optional |
| Display Screen | optional |
| OEM & ODM | optional |
| Dimension | 740*320*246mm |
| Weight | 158.73lbs.(72kg) |
Efficient Charging: The product exhibits strong charging acceptance and quick-charging capability, allowing for faster recharge times and minimizing downtime.
Maintenance-Free Operation: Users benefit from a maintenance-free experience as the product requires no acid or water for maintenance during usage, reducing hassle and upkeep costs.
High Capacity and Longevity: With its large capability and long life, the product is suitable for all high-power output applications, ensuring consistent performance over an extended period.
Environmentally Friendly Design: The product is environmentally friendly, featuring non-toxic, non-contaminating materials and containing no rare metals, contributing to sustainable energy solutions and reducing environmental impact.
Product Applications
The 96V 60Ah battery pack finds application across a wide range of electric vehicles, including:
Electric Golf Carts: Providing reliable power for golf courses, tournaments, and recreational use.
Golf Trolley: Offering long-lasting energy for golf trolleys used on courses and ranges.
Electric Utility Vehicle: Supporting electric utility vehicles for various tasks in industrial and commercial settings.
Sightseeing Car: Enabling sightseeing vehicles to operate smoothly and sustainably for tourism purposes.
Bonnen 96V Lithium Battery Applications
Bonnen Battery specializes in the production of lithium batteries, offering customized solutions tailored to meet diverse energy needs. Among our array of offerings, we excel in providing 96V customized lithium battery solutions. Our expertise lies in understanding the unique requirements of our clients and engineering batteries that deliver optimal performance, longevity, and safety. Whether it's for electric vehicles, energy storage systems, or industrial applications, Bonnen Battery's 96V customized lithium batteries are designed to exceed expectations, offering reliability and efficiency in powering various devices and systems. With our commitment to innovation and quality, Bonnen Battery stands as a trusted partner in the pursuit of sustainable energy solutions.
Electric cars: Bonnen Battery can custom 96V lithium batteries for all kinds of electric cars with efficiently and reliably. With a focus on performance and longevity, our batteries provide the energy density and safety required for electric vehicles to achieve optimal range and performance.
Electric motorcycles: Bonnen Battery can custom 96V lithium batteries for all kinds of electric motorcycles, offering a lightweight and high-capacity solution. Designed with durability and rapid charging capabilities, Bonnen Battery's batteries ensure smooth and reliable performance for electric two-wheelers.
Electric boats: Bonnen Battery can custom 96V lithium batteries for all kinds of electric boats, providing ample energy storage and efficient propulsion. With a focus on waterproofing and durability, our batteries are designed to withstand the rigors of marine environments while delivering consistent power output.
Electric tricycles: Bonnen Battery can custom 96V lithium batteries for all kinds of electric tricycles, offering a compact and lightweight power solution. Engineered for urban mobility and extended range, our batteries enable electric tricycles to navigate city streets with ease while providing reliable performance and longevity.
Electric utility vehicles: Bonnen Battery can custom 96V lithium batteries for all kinds of electric UTV, providing robust power delivery and long cycle life. Whether for cargo hauling, maintenance work, or recreational use, Bonnen Battery's batteries ensure efficient operation and extended runtimes for electric utility vehicles.
Electric lawn mowers: Bonnen Battery can custom 96V lithium batteries for all kinds of electric lawn mowers, offering quiet operation and zero emissions. With a focus on energy efficiency and durability, our batteries enable electric lawn mowers to tackle tough grass-cutting tasks while minimizing environmental impact.
Electric off-road vehicles: Bonnen Battery can custom 96V lithium batteries for all kinds of electric off-road vehicles, providing high torque and reliable performance on rugged terrain. Engineered for durability and shock resistance, Bonnen Battery's batteries enable electric off-road vehicles to navigate challenging landscapes with confidence.
Electric farm vehicles: Bonnen Battery can custom 96V lithium batteries for all kinds of electric farm vehicles, offering reliable performance and long operating hours. With a focus on durability and ruggedness, our batteries enable electric farm vehicles to handle agricultural tasks efficiently while minimizing downtime.
Industrial robots: Bonnen Battery can custom 96V lithium batteries for all kinds of industrial robots, providing the high energy density and fast charge-discharge rates required for automated manufacturing processes. With a focus on reliability and safety, Bonnen Battery's batteries ensure uninterrupted operation and precision control for industrial robots in various applications.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q: What applications are suitable for Bonnen Battery's 96V lithium batteries?
A: Our 96V batteries are versatile and can be tailored to various applications including electric vehicles, industrial equipment, energy storage systems, and more.
Q: What are the advantages of choosing Bonnen Battery's 96V lithium batteries?
A: Advantages include high energy density, long cycle life, fast charging capabilities, and customization options to meet specific requirements.
Q: How can I request a customized 96V lithium battery from Bonnen Battery?
A: You can contact our email info@bonnenbatteries.com, Bonnen engineering team will discuss your requirements and receive personalized assistance in designing the ideal battery solution for your needs.
Q: Can Bonnen Battery provide technical support for integrating 96V lithium batteries into my projects?
A: Yes, our engineering team can provide assistance with battery integration, including guidance on designing, wiring, mounting, and optimizing performance.
Q: What is the typical lead time for ordering a custom 96V lithium battery from Bonnen Battery?
A: Our production lead time is 30 days.
Q: Are Bonnen Battery's 96V lithium batteries compatible with existing charging infrastructure?
A: Yes, our batteries are designed to be compatible with standard charging protocols and can be charged using compatible chargers or charging stations.
Q: Can I monitor the performance and health of my 96V lithium battery from Bonnen Battery?
A: Yes, we offer monitoring and diagnostic solutions that allow you to track the performance and health of your battery remotely for proactive maintenance.
Q: How do I determine the optimal capacity and configuration for my 96V lithium battery from Bonnen Battery?
A: Our engineering team can work with you to assess your power requirements and recommend the most suitable capacity and configuration for your application.
Q: What kind of testing and quality assurance processes does Bonnen Battery implement for its 96V lithium batteries?
A: We conduct rigorous testing and quality assurance processes throughout the manufacturing process to ensure that our batteries meet the highest standards of performance and reliability.
Q: Can I retrofit my existing equipment with Bonnen Battery's 96V lithium batteries?
A: Yes, our batteries can often be retrofitted into existing equipment with minimal modifications, providing an efficient and cost-effective upgrade solution.
Q: Does Bonnen Battery offer support for international shipping and distribution of its 96V lithium batteries?
A: Yes, we have experience in international shipping and can facilitate the distribution of our batteries to customers worldwide.
Q: What kind of after-sales support does Bonnen Battery provide for its 96V lithium batteries?
A: We offer comprehensive after-sales support, including technical assistance, warranty services, and spare parts availability to ensure the long-term reliability of our batteries.
Q: How can I get started with ordering a custom 96V lithium battery from Bonnen Battery?
A: Simply reach out to info@bonnenbatteries.com to discuss your requirements, and we'll guide you through the process of designing and ordering the perfect battery solution for your application.
