Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619, ECE-R100
Model Number:
EV-LFP96-200A

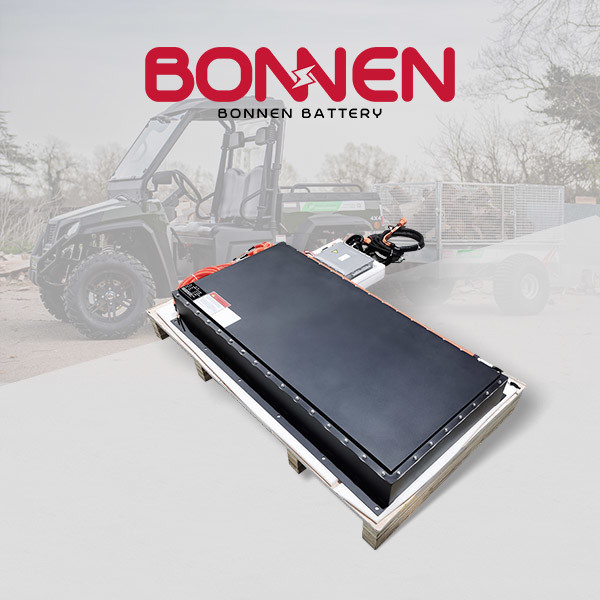

The 96V 200Ah LiFePO4 battery from Bonnen Battery is designed to power electric cars and retrofit conversion electric vehicles. This high-performance battery offers exceptional energy efficiency, longevity, and safety, making it an ideal choice for modern electric mobility solutions.
Product Features
Versatile Voltage Range: Operates within a voltage range of 75V to 109.5V, with a nominal rating of 96V, making it adaptable to various electric vehicle systems.
High Energy Capacity: Provides a substantial energy capacity of 19.2kWh, ensuring extended driving ranges and reliable performance.
Robust Battery Capacity: With a rated capacity of 200Ah, this battery delivers consistent power output for demanding electric vehicle applications.
Wide Operating Temperature: Capable of performing efficiently in extreme temperatures, from -20℃ to 55℃ during discharge and 0℃ to 55℃ during charging.
Environmental Durability: Designed to function effectively in environments with relative humidity levels ranging from 5% to 95%, ensuring reliable operation in various conditions.
Advanced LiFePO4 Chemistry: Utilizes cutting-edge Lithium Iron Phosphate technology for enhanced safety, stability, and longevity, making it a superior choice for electric vehicles.
Product Specification
| No. | Item Name | Basic Parameter |
| 1 | Voltage Range | 75V—109.5V(96VRated) |
| 2 | Battery System Whole Energy (KWH) | Rated:19.2kWh |
| 3 | Battery System Whole Capacity(Ah) | Rated :200Ah |
| 4 | Battery system Working Temperature | Discharge -20~55℃,Charge -0~55℃ |
| 5 | Battery system Surrounding environment relative humidity | 5%~95% |
| 6 | Battery system storage Temperature | -20～25℃(3-6 Month,50%SOC) |
| -20～45℃(1-3 Month,50%SOC) | ||
| -20～60℃(≤1 Month,50%SOC) | ||
| 7 | Battery system Max. charging current | 200A |
| 8 | Battery system Max. Instance discharging current(10s) | 400A |
| 9 | Battery system standard discharging current | 200A |
| 10 | Battery system instant discharging current (Max.)(30s) | 300A |
| 11 | Battery system Max. Continuous discharging current(30min) | 200A |
| 12 | Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case | ≥20MΩ |
| 13 | Cooling system | Air Cool |
| 14 | IP grade | IP67 |
| 15 | Battery dimension | 1381*610*160mm |
| 16 | Battery weight | 186Kgs |
Long Lifespan: LiFePO4 chemistry ensures a longer cycle life compared to traditional lead-acid batteries, reducing the need for frequent replacements.
High Efficiency: Provides consistent and reliable power output, ensuring your electric vehicle operates smoothly and efficiently.
Safety: Superior thermal and chemical stability, making it a safer option with reduced risk of overheating or combustion.
Low Maintenance: Minimal maintenance requirements, saving time and costs over the battery's lifespan.
Why Choose Bonnen Battery
Expertise and Experience: Bonnen Battery has extensive experience in producing high-quality lithium batteries for various applications, ensuring reliable and innovative energy solutions.
Customer Support: Dedicated customer service team providing comprehensive support from purchase to installation and beyond.
Custom Solutions: Ability to provide tailored battery solutions to meet specific customer needs and applications.
Quality Assurance: Rigorous quality control processes to ensure every battery meets the highest standards of performance and safety.
Product Applications
Electric Cars: Ideal for both new electric vehicles and retrofitting existing vehicles with electric power.
Conversion Kits: Perfect for conversion projects where traditional combustion engines are replaced with electric powertrains.
Electric Boats: Suitable for marine applications requiring robust and reliable power sources.
Commercial EVs: Excellent for use in commercial electric vehicles such as buses, trucks, and delivery vans.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q. What type of electric vehicles is the 96V 200Ah LiFePo4 Lithium Battery suitable for?
A: The 96V 200Ah LiFePo4 Lithium Battery is designed to cater to various electric vehicles, including electric cars, utility vehicles, and retrofit conversion electric vehicles. Its versatile design and robust performance make it an ideal choice for a wide range of EV projects.
Q. How does the ultrathin design of the battery benefit my electric vehicle?
A: Our battery boasts an ultrathin design, with a height of only 160mm. This slim profile enables easy integration into different car chassis, ensuring compatibility with various vehicle models without compromising on performance or space.
Q. What is the expected lifespan of the battery?
A: The battery offers exceptional longevity, with a cycle life exceeding 4000 cycles. This means it can sustain reliable performance over an extended period, making it a cost-effective choice for drivers seeking durability and longevity.
Q. Is the battery suitable for harsh driving conditions?
A: Absolutely. Our battery is built to withstand shocks and vibrations with excellent seismic resistance, meeting rigorous automotive standards for durability. Drive with confidence knowing that our battery can handle the demands of the road, providing stability and reliability in any conditions.
Q. Can the battery be used for fleet operations or battery swapping projects?
A: Yes, our battery offers versatile performance suitable for fleet operations and battery swapping projects. Whether for commercial fleets or shared mobility services, its superior charge and discharge capabilities ensure seamless operation and efficiency, optimizing performance and reducing downtime.
Q. Does the battery feature real-time monitoring capabilities?
A: Yes, our battery comes equipped with real-time monitoring capabilities, allowing drivers to track various battery parameters and performance metrics. From state of charge to temperature monitoring, our system provides comprehensive insights, enabling proactive maintenance and maximizing battery lifespan.
Q. Can the 96V 200Ah LiFePo4 Lithium Battery be customized for specific electric vehicle models?
A: Yes, Bonnen Battery specializes in customized solutions for electric vehicle manufacturers and project managers. We can tailor the battery to fit specific vehicle requirements, ensuring optimal performance and compatibility.
Q. Can the battery be safely transported and installed in electric vehicles?
A: Yes, our battery is designed with safety in mind and complies with all relevant transportation and installation regulations. Our team ensures proper packaging and handling procedures to guarantee the safe transportation and installation of the battery in electric vehicles.
Q. Does the battery come with a warranty or guarantee?
A: Yes, we offer a warranty or guarantee on our batteries to provide peace of mind to our customers. We can send the details regarding warranty coverage and terms to you by email.
Q: How does Bonnen Battery ensure product quality and reliability?
A: We maintain stringent quality control measures throughout the manufacturing process to ensure that each battery meets our high standards for performance, reliability, and safety. Additionally, our batteries undergo rigorous testing and certification procedures to guarantee compliance with industry regulations and standards.
