Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619, ECE-R100
Model Number:
EV-LFP72-200

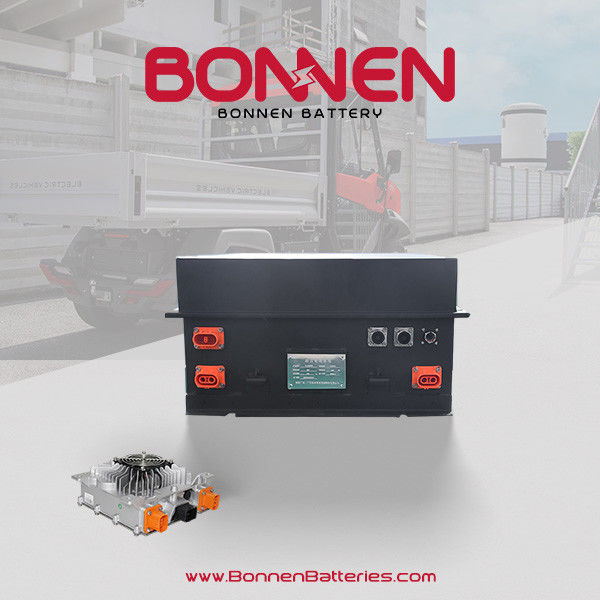

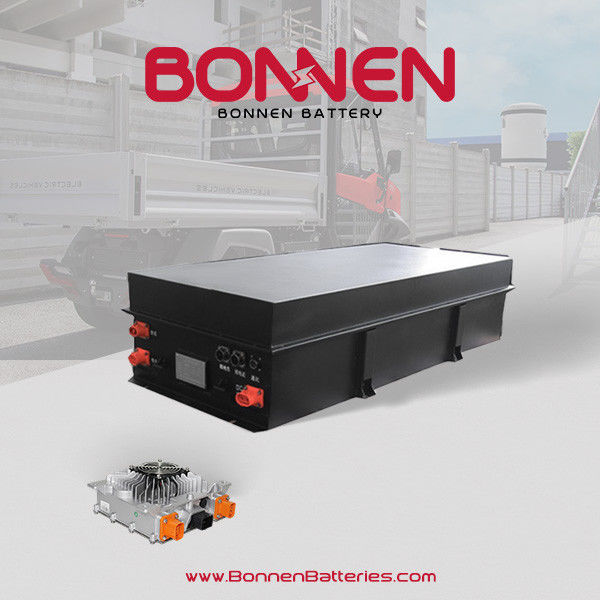

Bonnen 72V 200Ah Lithium-ion battery packs are engineered to deliver exceptional power and endurance, making them ideal for a wide range of electric vehicle applications. Whether you're navigating city streets in a compact electric car or transporting goods in a small delivery van, Bonnen's EV batteries provide the reliability and performance you need. With our commitment to innovation and customization, we empower you to create the perfect battery system tailored to your specific requirements. Trust Bonnen for industry-leading EV battery solutions that drive progress and sustainability forward.
Product Features
1. Ample Power Storage: Bonnen's 72V200AH lithium battery provides ample storage capacity, ensuring prolonged usage and dependable energy supply for electric vehicles and diverse applications.
2. Enduring Durability: Engineered with cutting-edge technology and premium materials, this lithium battery offers enduring durability, maintaining peak performance throughout its service life.
3. Optimized Energy Retention: Tailored for efficient energy retention, Bonnen's lithium battery maximizes energy utilization, optimizing the efficiency and longevity of electric vehicles and equipment.
4. Rapid Recharge Capability: Enjoy swift and hassle-free recharges with Bonnen's lithium battery, minimizing downtime and boosting operational efficiency for users.
5. Robust Safety Measures: Equipped with robust safety features, this lithium battery ensures reliable operation by safeguarding against overcharging, overheating, and other potential hazards.
6. Universal Compatibility: Bonnen's lithium battery is universally compatible with a diverse array of electric vehicles and systems, offering seamless integration options and unparalleled versatility for various applications.
Product Specification
| No. | Item Name | Basic Parameter |
| 1 | Voltage | 72V |
| 2 | Battery system whole energy(KWh) | Rated:14.4kWh |
| 3 | Battery system whole capacity(Ah) | Rated:200Ah |
| 4 | Battery system working temperature | Discharge -20~45℃,charge 0~45℃ |
| 5 | Battery surrounding environment relative humidity | 10%~85% |
| 6 | Battery storage temperature | -20～45℃ |
| 7 | Battery standard charging current(23±2℃) | 70A |
| 8 | Battery Max charging current(23±2℃) | 200A |
| 9 | Battery standard discharging current(23±2℃) | 200A |
| 10 | Battery continuous discharging current(23±2℃) | 250A |
| 11 | Battery discharge peak current(5s)(23±2℃) | 350A |
| 12 | Battery system insulation resistance testing value | ≥20mΩ |
| 13 | Insulation Resistance Testing | ≥20MΩ |
| 14 | Battery system waterproof grade | IP67 |
| 15 | Cooling system | Air cool |
Tailor-Made Design: Our lithium EV battery is meticulously customized to meet your specific requirements, enabling them to store increased energy within a specified volume,ensuring optimal performance and compatibility with your electric vehicle (EV) system. Each aspect, from voltage to capacity, is tailored to suit your vehicle's needs, providing a seamless integration experience.
Enhanced Performance: With advanced lithium-ion technology, our battery delivers unparalleled performance, offering higher energy density and greater power output compared to traditional lead-acid batteries. Experience smoother acceleration, longer driving range, and enhanced overall efficiency, empowering you to go farther with confidence.
Lower cost: Say goodbye to frequent battery replacements and costly maintenance. Our lithium EV battery is engineered for longevity, boasting a significantly longer lifespan than conventional alternatives. Enjoy years of reliable service and reduced downtime, saving both time and money in the long run.
Eco-Friendly Solution: Join the green revolution with our environmentally friendly lithium EV battery. By utilizing clean energy technology, you can reduce your carbon footprint and contribute to a sustainable future. Experience guilt-free driving without harmful emissions, promoting cleaner air and a healthier planet for generations to come.
Intelligent Battery Management: With built-in intelligent battery management systems (BMS), our lithium EV battery ensures optimal performance and safety at all times.
Product Applications
Maximize the potential of your small or medium sized electric vehicles, utility trucks, and UTVs with Bonnen's cutting-edge 72V200AH lithium battery. Experience superior performance, extended range, and reliable power for your fleet's diverse applications.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q. What type of electric vehicles is the 72V 200Ah LiFePo4 Lithium Battery suitable for?
A: The 72V 200Ah LiFePo4 Lithium Battery is designed to cater to various electric vehicles, including electric cars, utility vehicles, and retrofit conversion electric vehicles. Its versatile design and robust performance make it an ideal choice for a wide range of EV projects.
Q. What is the expected lifespan of the battery?
A: The battery offers exceptional longevity, with a cycle life exceeding 6000 cycles. This means it can sustain reliable performance over an extended period, making it a cost-effective choice for drivers seeking durability and longevity.
Q. Is the battery suitable for harsh driving conditions?
A: Absolutely. Our battery is built to withstand shocks and vibrations with excellent seismic resistance, meeting rigorous automotive standards for durability. Drive with confidence knowing that our battery can handle the demands of the road, providing stability and reliability in any conditions.
Q. Can the battery be used for fleet operations or battery swapping projects?
A: Yes, our battery offers versatile performance suitable for fleet operations and battery swapping projects. Whether for commercial fleets or shared mobility services, its superior charge and discharge capabilities ensure seamless operation and efficiency, optimizing performance and reducing downtime.
Q. Does the battery feature real-time monitoring capabilities?
A: Yes, our battery comes equipped with real-time monitoring capabilities, allowing drivers to track various battery parameters and performance metrics. From state of charge to temperature monitoring, our system provides comprehensive insights, enabling proactive maintenance and maximizing battery lifespan.
Q. Can the 72V 200Ah LiFePo4 Lithium Battery be customized for specific electric vehicle models?
A: Yes, Bonnen Battery specializes in customized solutions for electric vehicle manufacturers and project managers. We can tailor the battery to fit specific vehicle requirements, ensuring optimal performance and compatibility.
Q. Can the battery be safely transported and installed in electric vehicles?
A: Yes, our battery is designed with safety in mind and complies with all relevant transportation and installation regulations. Our team ensures proper packaging and handling procedures to guarantee the safe transportation and installation of the battery in electric vehicles.
Q. Does the battery come with a warranty or guarantee?
A: Yes, we offer a warranty or guarantee on our batteries to provide peace of mind to our customers. We can send the details regarding warranty coverage and terms to you by email.
Q: How does Bonnen Battery ensure product quality and reliability?
A: We maintain stringent quality control measures throughout the manufacturing process to ensure that each battery meets our high standards for performance, reliability, and safety. Additionally, our batteries undergo rigorous testing and certification procedures to guarantee compliance with industry regulations and standards.
