Place of Origin:
China
Brand Name:
Bonnen Battery
Certification:
Compliance with MSDS, UN38.3, CE, CB, IEC 62619, ECE-R100
Model Number:
EM-LFP72-60A

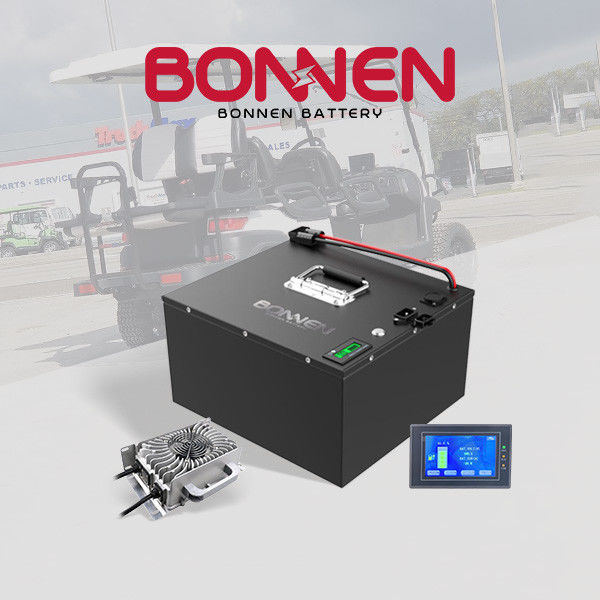

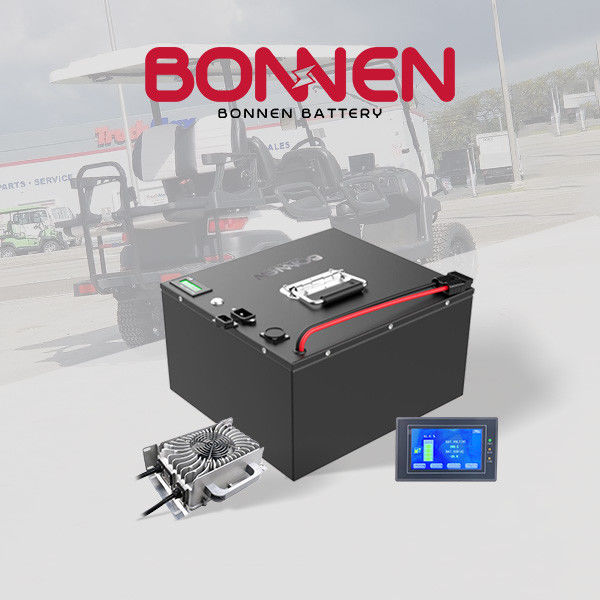

Our 72V 60Ah lithium Batteries come equipped with a convenient battery level display screen, providing users with real-time visibility into the battery's charge status for enhanced convenience and peace of mind. Our batteries feature top-tier lithium composition, surpassing the quality of lithium used by competitors. Meticulously engineered and thoroughly tested by our expert team, our battery systems offer a comprehensive solution, replacing outdated lead-acid batteries with cutting-edge technology.
Installation is a breeze, requiring minimal effort, and our batteries boast zero maintenance, saving valuable time and resources for users. Say goodbye to the hassle of dealing with multiple chargers and enduring lengthy installation processes; our complete systems easily integrate into the original battery location, ensuring a hassle-free upgrade experience.
Product Features
1. Battery Level Display Screen: Keep track of your power usage with the built-in battery level display screen, providing real-time information on remaining charge.
2. Modular Design: Enjoy flexibility and convenience with a modular design that allows for easy installation, maintenance, and potential future upgrades.
3. High Performance: Experience top-notch performance with advanced lithium technology, delivering reliable power and extended lifespan for your applications.
4. Efficient Power Output: Optimize your energy usage with efficient power output, ensuring maximum performance and minimal wastage.
5. Versatile Compatibility: Smoothly integrate the battery into various systems and applications, thanks to its versatile compatibility and standardized design.
6. Durable Construction: Rely on the rugged and durable construction of the battery, built to withstand challenging environmental conditions and deliver consistent performance over time.
Product Specification
| No. | Item Name | Basic Parameter |
| 1 | Voltage Range | 73.6V |
| 2 | Battery System Whole Energy (KWH) | Rated:4.4kWh |
| 3 | Battery System Whole Capacity(Ah) | Rated:60Ah |
| 4 | Battery system Working Temperature (℃) | Discharge -20~55℃,Charge -10~55℃ |
| 5 | Battery system Surrounding environment relative humidity | 5%~95% |
| 6 | Battery system storage Temperature | -20～25℃(3-6 Month,50%SOC) |
| -20～45℃(1-3 Month,50%SOC) | ||
| -20～60℃(≤1 Month,50%SOC) | ||
| 7 | Battery system Max. charging current | 60A |
| 8 | Battery system Max. Instance discharging current(10s) | 180A |
| 9 | Battery system standard discharging current | 30A |
| 10 | Battery system instant discharging current (Max.) (30s) | 200A |
| 11 | Battery system Max. Continuous discharging current | 100A |
| 12 | Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case | ≥20MΩ |
| 13 | Battery system on Vehicle Waterproofing class | IP67 |
| 14 | Cooling system | Air Cool |
Enhanced Monitoring and Control: With the battery level display screen, users can easily monitor their power usage in real-time, enabling better management of energy consumption and ensuring uninterrupted operation.
Simplified Installation and Maintenance: Our battery design offers convenience by allowing for easy installation, routine maintenance, saving time and resources for users.
Reliable and Long-lasting Performance: Leveraging advanced lithium technology, this battery ensures high performance, reliability, and an extended lifespan, providing consistent power for various applications over time.
Optimized Efficiency and Compatibility: Enjoy efficient power output that maximizes performance while minimizing energy wastage. Additionally, the versatile compatibility of the battery allows for smooth integration into a wide range of systems and applications, enhancing overall operational efficiency and flexibility.
Product Applications
Electric Scooters: Powering electric scooters for urban commuting or leisure riding.
Electric Tricycles (E-trikes): Enabling electric tricycles for passenger or cargo transportation in urban or rural areas.
Electric Rickshaws: Powering electric rickshaws commonly used for short-distance transportation in densely populated areas.
Electric Lawn Mowers: Powering electric lawn mowers, offering an environmentally friendly alternative to traditional gasoline-powered mowers.
Electric Farming Equipment: Providing power for electric farming equipment such as small tractors or utility vehicles used in agriculture.
The Process Flow & Duration Estimation
Step 1: Battery Specification Discussion (1-3 days)
We initiate discussions to gather essential details, including application, voltage, discharging and charging currents, IP grade, maximum case dimensions, etc. Once all requirements are clarified, we finalize the battery specifications to ensure alignment with your needs.
Step 2: Solution Drawing Design And Confirmation (3 days for initial drawing)
Bonnen Battery's experienced engineering team will craft a design drawing according to the specifications we've discussed. We'll present this drawing to you for review and confirmation. If any adjustments are required, we'll gladly accommodate your feedback. You'll receive three design options at no extra charge.
Step 3: Prototype/ Bulk Production (30 days)
Once the final design drawing is confirmed, Bonnen Battery will initiate manufacturing, whether for prototyping or bulk production. This process generally takes approximately 30 days to fulfill.
Step 4: Shipping (Dependent on distance)
Bonnen Battery provides a range of shipping options customized to suit your requirements. Air shipping, while more expensive, is the fastest and perfect for urgent orders. On the other hand, sea shipping is the most cost-effective option, albeit with a longer transit time compared to air freight.
FAQ
Q. What type of electric vehicles is the 72V 60Ah LiFePo4 Lithium Battery suitable for?
A: The 72V 60Ah LiFePo4 Lithium Battery is designed to cater to various electric vehicles, including electric cars, utility vehicles, and retrofit conversion electric vehicles. Its versatile design and robust performance make it an ideal choice for a wide range of EV projects.
Q. What is the expected lifespan of the battery?
A: The battery offers exceptional longevity, with a cycle life exceeding 6000 cycles. This means it can sustain reliable performance over an extended period, making it a cost-effective choice for drivers seeking durability and longevity.
Q. Is the battery suitable for harsh driving conditions?
A: Absolutely. Our battery is built to withstand shocks and vibrations with excellent seismic resistance, meeting rigorous automotive standards for durability. Drive with confidence knowing that our battery can handle the demands of the road, providing stability and reliability in any conditions.
Q. Can the battery be used for fleet operations or battery swapping projects?
A: Yes, our battery offers versatile performance suitable for fleet operations and battery swapping projects. Whether for commercial fleets or shared mobility services, its superior charge and discharge capabilities ensure seamless operation and efficiency, optimizing performance and reducing downtime.
Q. Does the battery feature real-time monitoring capabilities?
A: Yes, our battery comes equipped with real-time monitoring capabilities, allowing drivers to track various battery parameters and performance metrics. From state of charge to temperature monitoring, our system provides comprehensive insights, enabling proactive maintenance and maximizing battery lifespan.
Q. Can the 72V 60Ah LiFePo4 Lithium Battery be customized for specific electric vehicle models?
A: Yes, Bonnen Battery specializes in customized solutions for electric vehicle manufacturers and project managers. We can tailor the battery to fit specific vehicle requirements, ensuring optimal performance and compatibility.
Q. Can the battery be safely transported and installed in electric vehicles?
A: Yes, our battery is designed with safety in mind and complies with all relevant transportation and installation regulations. Our team ensures proper packaging and handling procedures to guarantee the safe transportation and installation of the battery in electric vehicles.
Q. Does the battery come with a warranty or guarantee?
A: Yes, we offer a warranty or guarantee on our batteries to provide peace of mind to our customers. We can send the details regarding warranty coverage and terms to you by email.
Q: How does Bonnen Battery ensure product quality and reliability?
A: We maintain stringent quality control measures throughout the manufacturing process to ensure that each battery meets our high standards for performance, reliability, and safety. Additionally, our batteries undergo rigorous testing and certification procedures to guarantee compliance with industry regulations and standards.
