LiFePo4 6000 Times Home Battery Backup 48V 150Ah Rack Solar Battery

LiFePo4 6000 Times Home Battery Backup 48V 150Ah Rack Solar Battery

Place of Origin:


Brand Name:

Bonnen Battery


Compliance with MSDS, UN38.3, CE, CB, IEC 62619

Model Number:


Contact Us
Request A Quote
Product Details
Total Energy:
Battery Chemistry:
LiFePo4 Battery
Battery Cell:
Tier One, A+ CATL/EVE Cell Composition
BMS Safety Features:
Overcharge And Deep Discharge Protection, Voltage And Temperature Observation, Over Current Protection, Cell Monitoring And Balancing, Over-heat Protection
Compatible Inverter Brands:
Compatible With 98% Of Inverter Brands On The Market
Residential Battery For Solar Energy Storage. Mobile Or Off Grid Applications
Installation Method:
DC Coupling:
Cycle Life:
≥6000 Times
5/10 Years Warranty
Payment & Shipping Terms
Minimum Order Quantity
2 units
Special Offers Available
Packaging Details
wooden case
Delivery Time
30 days
Payment Terms
T/T, L/C, ACH, Fedwire Payment, SEPA Credit Transfer, Electronic Fund Transfer
Supply Ability
5000 units /month
Product Description

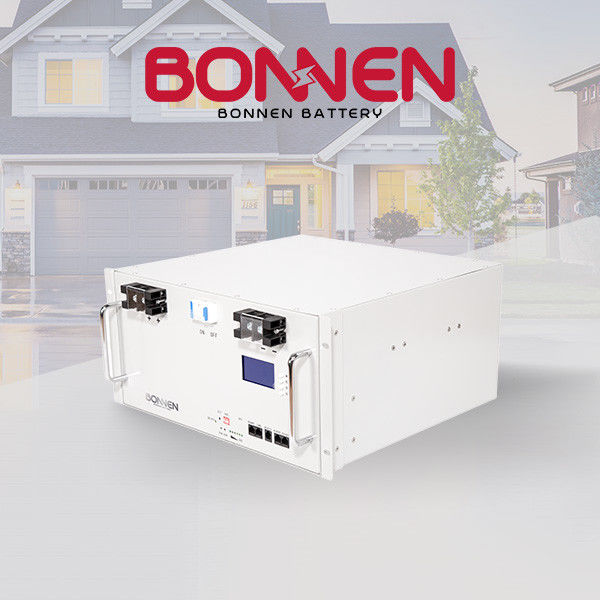

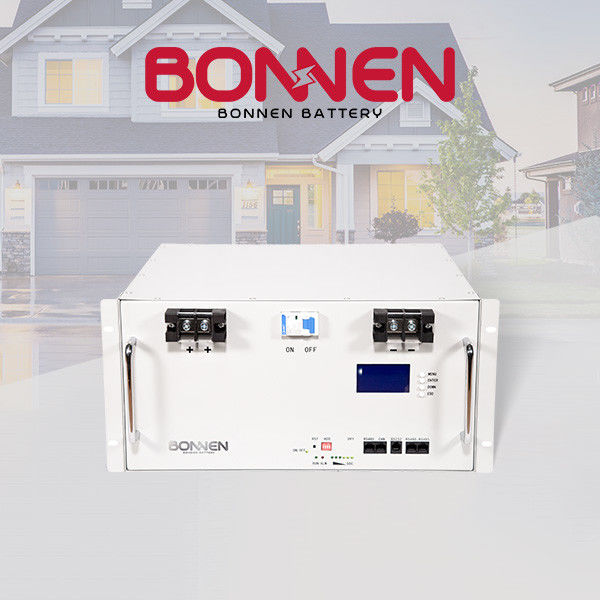

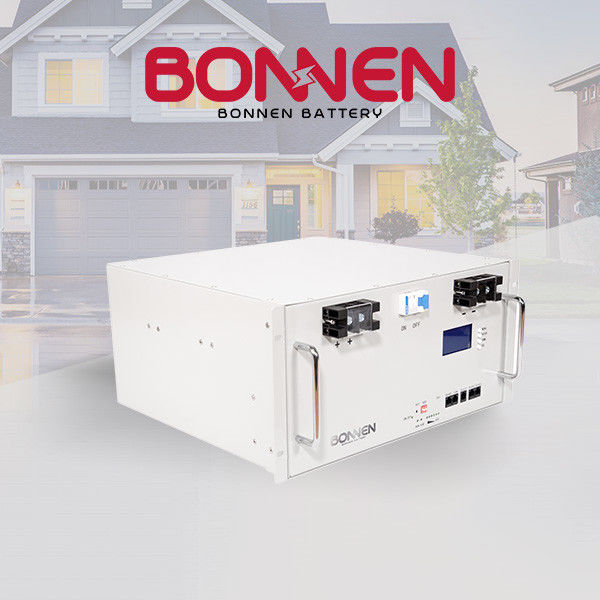

Best Home Battery Backup LiFePo4 48V 150Ah Rack Solar Battery


Product Introduction


Revolutionize your home's energy storage with our advanced residential battery system. Engineered for compatibility with solar setups, this battery offers scalable storage capacity to meet your needs. Its robust construction and intelligent monitoring system guarantee reliable performance and peace of mind. With the LFP48150, you can enjoy uninterrupted power and maximize your energy savings.


Product Features


1. High Energy Density: This rack-mounted lithium battery offers high energy density, providing more energy storage capacity in a compact footprint.


2. Flexible Installation: The rack-mounted design allows for flexible installation options, making it suitable for a wide range of applications and space constraints.


3. Intelligent Management: Integrated with intelligent battery management technology, this battery optimizes charging and discharging for maximum efficiency.


4. Remote Monitoring: Monitor battery performance and status remotely via the Bonnen Company's cloud-based monitoring platform, ensuring peace of mind.


5. Robust Construction: Built to withstand rigorous operating conditions, this battery boasts a durable construction that ensures long-term reliability and performance.


6. Regulatory Compliance: Designed and manufactured to meet industry standards and regulations like EN62619, and UL1973, this battery offers a safe and compliant energy storage solution.


LiFePo4 6000 Times Home Battery Backup 48V 150Ah Rack Solar Battery 0


Product Specification


No. Item Name Basic Parameter
1 Nominal voltage[V] 48V
2 Capacity [C/5][Ah] 150Ah
3 Energy[ C/5][WH] 7200Wh
4 Dimension 3U
Width[mm] 450
Height[mm] 222
Length[mm] 482
5 Weight[kg] 63±0.5
Electric characteristic
6 Work Voltage Range[V] 40V~55.5V
7 Charge voltage[V] 55.5 V
  (Float charge:51.75V, Boost charge: 54.75V)
8 Max charge current 150A
9 Max. Output power[W] 7200W
10 Recharge time[h] 0.2C*6hr (standard)
11 Discharge current at the various back up times
1h 1C
2h 0.5C
4h 0.25C
12 Lifetime @+25℃ >10 years
13 Cycle life[0.2C, 80%DOD,+25℃] ≥ 6000
14 Operating temperature Charge :0~45℃;
15 Storage temperature -10℃~45(<1months,20%~60%SOC);
16 EMC standard compliance EN 61000 chapter
17 Protection class IP20
18 Maintenance Charge the battery half a year when in storage


Product Benefits


Long Battery Life: This LiFePO4 Powerwall battery boasts an impressive cycle life of over 6000 cycles at 80% depth of discharge (DOD), ensuring longevity and reliability over an extended period of use, with a design lifespan of up to 15 years.


BMS Protection: Equipped with a sophisticated built-in intelligent battery management system (BMS), this battery offers comprehensive protection functions to proactively safeguard against potential property loss, enhancing peace of mind for users.


Maintenance-Free Operation: Unlike lead-acid batteries, lithium batteries require no additional ventilation or regular acid refills, resulting in hassle-free maintenance. Plug and Play functionality ensures seamless operation regardless of the time or location of use, maximizing convenience for users.


Flexible Energy Customization: With a standardized rack size, customers have the flexibility to customize their energy storage solutions by incorporating additional modules, allowing for easy scalability to meet varying energy demands.


Inverter Compatibility


Are you a distributor or installer of inverters in need of a top-quality LiFePO4 solar battery solution to fulfill your customers' requirements? Your search ends here with Bonnen Battery, the premier supplier of advanced energy storage systems!


LiFePo4 6000 Times Home Battery Backup 48V 150Ah Rack Solar Battery 1

Product Applications


Have you ever faced the inconvenience of an unexpected power outage, leaving your appliances useless? It's precisely moments like these where home backup power solutions prove invaluable. The Bonnen LFP48150 emerges as a robust whole-house battery backup and LiFePO4 Power Station, boasting a 7.2kWh storage capacity and maximum power output of 5KW. With such capabilities, you can rest assured that sudden electricity disruptions won't disrupt your daily activities, as this system can sustain nearly continuous use throughout the day.


LiFePo4 6000 Times Home Battery Backup 48V 150Ah Rack Solar Battery 2



Q: What are home energy storage systems?
A: Home energy storage systems are gaining popularity as battery and solar panel costs decrease. Typically, these systems include photovoltaic systems, batteries, and inverters. The photovoltaic system generates electricity from sunlight, stored in batteries. Inverters convert stored DC electricity into AC electricity for home use. These systems offer advantages like generating your own electricity, reducing reliance on the grid, and saving on energy bills.


Q: Bonnen home energy storage technical specifications.
A: Bonnen provides two types of residential energy storage systems. Our first option offers either wall-mounted or stand-mounted batteries with capacities of 5.12kWh and 10.24kWh, typically compatible with inverters ranging from 3KW to 7KW. You have the flexibility to choose your preferred inverter brand, or alternatively, you can opt to purchase home batteries separately.
Additionally, we provide an all-in-one stack system. Bonnen has developed both low-voltage and high-voltage stack systems, allowing buyers to select the desired voltage and power. The modular design of the high-voltage battery system enables stacking of 3 to 7 battery modules, with capacities ranging from 15.36 KWH to 35.84 KWH and voltages from 153.6V to 358.4V. This system is equipped with an output inverter rated between 8KW to 12KW.


Q: What does a bonnen home energy storage battery do?
A: A Bonnen Home Energy Storage System (HESS) serves multiple purposes. It stores solar energy generated during the day for nighttime use, ensuring continuous power supply. Additionally, it acts as a backup power source during grid outages. Depending on your location and local electricity rates, the home battery can potentially save you money by allowing you to shift energy consumption from high-rate to low-rate periods. Lastly, it empowers you to take control of your energy usage and achieve self-sufficiency from the grid.

Q: Can I determine the charging priorities for my home energy storage battery?
A: Yes, you have the option to set charging priorities based on your preferences:
Self-Powered: Utilize the stored energy from your solar system to power your home after sunset.
Backup Only: Reserve all the energy in your home battery for emergency backup power during periods of low or no sunlight.
Balanced Time-Based Control: Power your home after sunset while avoiding costly on-peak electricity rates by utilizing the electricity stored in your solar system.


Q: Is solar panel installation required to use the Bonnen home energy storage system?
A: No, it is not necessary to have PV/solar panels to operate the Bonnen Home Energy Storage System. The home energy storage battery, also known as Powerwall, can be charged using AC power from the grid or a generator. Bonnen offers an all-in-one package that includes household batteries and inverter systems, with the option to include solar photovoltaic systems upon request. Solar panels can be used for load transfer or as a standby power supply, but they are not mandatory for the operation of the system.


Q: Where should I install the home battery energy storage?
A: Typically, the home battery energy storage is installed either outdoors or in a utility room such as a garage or basement. Factors to consider include heat dissipation, ventilation requirements, avoiding direct sunlight exposure, and protection against water exposure.


Q: How does a home battery connect to my home?
A: Prior to connecting a battery to the grid, it's important to install a separate AC breaker between the inverter and the AC input power source. This ensures that the inverter can be safely disconnected during maintenance and is fully protected from overcurrent. For hybrid-coupled homes, before making connections to the Grid, Load, and Gen ports, ensure that the AC breaker or disconnector is turned off.


Q: What's the difference between single-phase and three-phase electricity?
A: Single-phase electricity, typically found in households, operates at either 230 or 240 volts, while three-phase electricity is commonly used in commercial and industrial settings and operates at either 400 or 415 volts. One notable distinction between single-phase and three-phase electricity is the power transmission capacity. Three-phase electricity can transmit more power than single-phase electricity, making it suitable for high-powered applications. Additionally, three-phase electricity tends to experience fewer power fluctuations compared to single-phase electricity.


Q: Which is better for my home solar system: single-phase or three-phase?
A: Single-phase systems are typically preferred for residential homes, whereas three-phase systems are commonly used in commercial and industrial environments. If you're uncertain about the phase of your system, you can usually locate this information on your electrical panel.


Q: How much power do I need for my home battery energy storage?
A: We recommend selecting only essential appliances to be connected to the battery, such as a refrigerator, a few phone charging sockets, lights, and the wifi system. During a complete blackout, a typical 10 kWh battery can provide power for approximately 10 to 12 hours, depending on the load it is supporting. For instance, a 10 kWh battery can run a refrigerator for 14 hours, a television for 130 hours, or a single LED light bulb for 1,000 hours. Therefore, many households opt for a battery with a storage capacity of 10 kilowatt-hours. Before purchasing a battery storage system, it is crucial to discuss your requirements with our system designer.


Q: How long does a home energy storage battery last on one charge?
A: The duration of a home energy storage battery's charge depends on your electricity usage. The more household appliances in use, the shorter the battery's lifespan on a single charge. For example, with basic consumption and lighting, a battery may last approximately 12 hours. Bonnen engineers will design and calculate the battery capacity based on your historical electricity consumption data.


Q: How long will it take to fully charge my home energy storage battery?
A: The time it takes to fully charge your home energy storage battery depends on various factors such as sunlight duration, brightness, shading, outside temperature, etc.


Q: Does my home energy storage system automatically switch on during grid failure?
A: Yes, the Bonnen Home Energy Storage System will automatically switch to battery power in the event of a grid failure.


Q: How long do batteries last?
A: Lithium-ion batteries typically endure around 6000 cycles (charges/discharges) at an 80 percent discharge rate, translating to an expected lifespan of over 10 years for high-performance systems if cycled once per day. Bonnen LiFePO4 batteries are designed to last over 15 years.


Q: What is the minimum order quantity (MOQ) for bonnen?
A: In fact, there is no minimum order quantity for Bonnen home energy storage systems. Bonnen welcomes distributors, resellers, PV installers, and system contractors as its target customers. Even a single sample order is welcomed. Let Bonnen assist in expanding the ESS market and enhancing your profitability!
