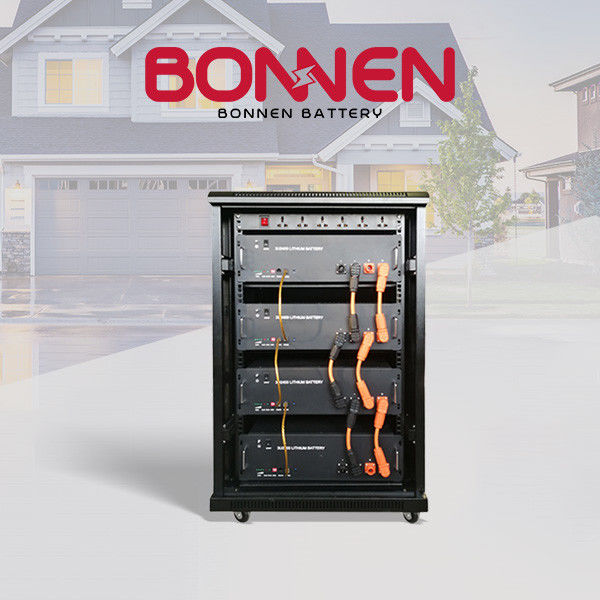

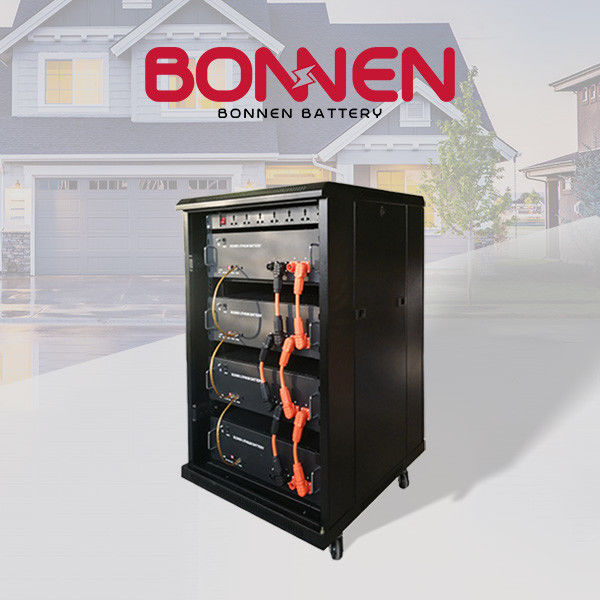

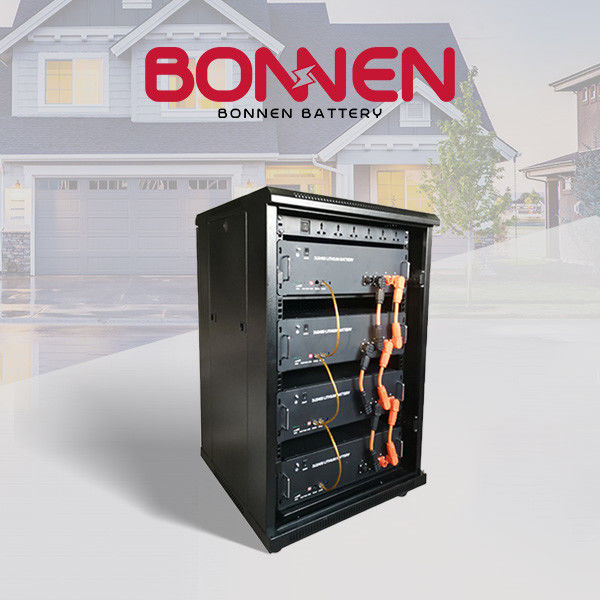

10Kwh Home Solar Battery Backup 48V 200Ah LiFePo4 Lithium Energy Storage Battery

10Kwh Home Solar Battery Backup 48V 200Ah LiFePo4 Lithium Energy Storage Battery

Place of Origin:


Brand Name:

Bonnen Battery


Compliance with MSDS, UN38.3, CE, CB, IEC 62619

Model Number:


Contact Us
Request A Quote
Product Details
Total Energy:
Battery Chemistry:
LiFePo4 Battery
Battery Cell:
Tier One, A+ CATL/EVE Cell Composition
BMS Safety Features:
Overcharge And Deep Discharge Protection, Voltage And Temperature Observation, Over Current Protection, Cell Monitoring And Balancing, Over-heat Protection
Compatible Inverter Brands:
Compatible With 98% Of Inverter Brands On The Market
Residential Battery For Solar Energy Storage. Mobile Or Off Grid Applications
Installation Method:
DC Coupling:
Cycle Life:
≥6000 Times
5/10 Years Warranty
Payment & Shipping Terms
Minimum Order Quantity
2 units
Special Offers Available
Packaging Details
wooden case
Delivery Time
30 days
Payment Terms
T/T, L/C, ACH, Fedwire Payment, SEPA Credit Transfer, Electronic Fund Transfer
Supply Ability
5000 units /month
Product Description

10Kwh Lithium Battery For Home Energy Storage, Household Energy Storage Battery 48V 200Ah LiFePo4 Battery


Product Introduction


The 10kWh lithium battery for home energy storage comprises four units of 48V 50Ah batteries connected in parallel, commonly utilized in database, telecommunication, and energy backup projects. This configuration not only saves 50% of land area but also guarantees high energy storage and output without requiring additional space. As a result, installation efficiency is significantly enhanced, allowing for streamlined deployment and optimized utilization of available space. Additionally, this setup ensures reliable and efficient energy storage solutions for a variety of applications.


Product Features


1. Space-saving Design: The compact design of the 48V 200Ah battery allows for efficient use of space, making it ideal for residential installations where space may be limited. Its smaller footprint ensures that it can fit into various locations within the home without occupying excessive space.


2. Ease of Installation: Designed with user convenience in mind, the 48V 200Ah battery features a simple and straightforward installation process. Clear instructions and intuitive design elements make it easier for homeowners or installers to set up the battery system quickly and efficiently.


3. Energy Efficiency: The 48V 200Ah battery is engineered to minimize energy loss during storage and discharge. By optimizing energy transfer and reducing internal resistance, it helps conserve energy and lower overall energy consumption, resulting in cost savings for homeowners.


4. Flexible Capacity Expansion: This battery offers the flexibility to expand its capacity over time to meet changing energy needs. Whether it's adding more battery modules or upgrading to a higher capacity model, users can easily scale up their energy storage system as required, ensuring it remains adaptable to their evolving needs.


5. Reliable BMS System: The Battery Management System (BMS) integrated into the 48V 200Ah battery plays a crucial role in ensuring its reliability and safety. The BMS monitors key parameters such as voltage, temperature, and state of charge, helping to optimize performance, prevent overcharging or over-discharging, and prolong the battery's lifespan.


6. Long Cycle Life: With a lifespan of more than 6000 cycles, the 48V 200Ah battery offers exceptional durability and longevity. This means that it can provide reliable energy storage and discharge capabilities for many years, reducing the need for frequent battery replacements and providing long-term peace of mind for homeowners.


10Kwh Home Solar Battery Backup 48V 200Ah LiFePo4 Lithium Energy Storage Battery 0


Product Specification


No. Item Name Basic Parameter
4 units of 48V 50Ah lithium battery are connected in parallel
1 Charging voltage 48V
2 Max voltage 54.75V
4 Mini Voltage 37.5V
5 Nominal capacity 50Ah
6 Nominal energy 2.4Kwh
7 Standard charging current CC-CV mode
Cut-off current 1.25A
8 Standard discharging current CC mode
9 Max discharge watt 2.4KW
10 Weight 25kgs
11 Temperature range -10~55℃
12 Communication mode 485/CAN Bus
13 Cycle lifetime 80% DOD, 6000 times
14 Size(W*H*D:mm) 3U


Product Benefits


Enhanced Energy Storage Capacity: The 48V 200AH product offers a substantial energy storage capacity, allowing homeowners to store more energy from renewable sources like solar panels. This enables greater energy independence and resilience during power outages or peak demand periods.


Cost Savings: By storing excess energy during off-peak hours and utilizing it during peak demand times, homeowners can reduce their reliance on grid power and lower their electricity bills. The efficient energy management provided by the 48V 200AH product translates to significant cost savings over time.


Reliable Backup Power: With its robust design and long cycle life, the 48V 200AH product provides reliable backup power for essential appliances and devices during emergencies or grid outages. This ensures continuity of operations and comfort for homeowners, even in adverse conditions.


Environmental Benefits: Utilizing the 48V 200AH product promotes a cleaner and more sustainable energy future by reducing reliance on fossil fuels and lowering carbon emissions. By harnessing renewable energy sources and maximizing energy efficiency, homeowners can contribute to environmental conservation efforts while enjoying the benefits of clean and renewable energy.


Inverter Compatibility


Are you a distributor or installer of inverters in need of a top-quality LiFePO4 solar battery solution to fulfill your customers' requirements? Your search ends here with Bonnen Battery, the premier supplier of advanced energy storage systems!


10Kwh Home Solar Battery Backup 48V 200Ah LiFePo4 Lithium Energy Storage Battery 1

Product Applications


This battery system is extensively utilized in various applications due to its versatility and reliability. In data centers, it serves as a backup power source, ensuring uninterrupted operation in the event of a power outage. Telecommunications networks rely on this battery system to maintain connectivity during emergencies and grid failures. Additionally, it plays a crucial role in energy backup projects, providing a dependable power supply for critical infrastructure and services. Moreover, in home energy storage systems, it enables homeowners to store surplus energy from renewable sources like solar panels for use during peak demand periods or power outages, contributing to energy efficiency and sustainability efforts.


10Kwh Home Solar Battery Backup 48V 200Ah LiFePo4 Lithium Energy Storage Battery 2



Q: What are home energy storage systems?
A: Home energy storage systems are gaining popularity as battery and solar panel costs decrease. Typically, these systems include photovoltaic systems, batteries, and inverters. The photovoltaic system generates electricity from sunlight, stored in batteries. Inverters convert stored DC electricity into AC electricity for home use. These systems offer advantages like generating your own electricity, reducing reliance on the grid, and saving on energy bills.


Q: Bonnen home energy storage technical specifications.
A: Bonnen provides two types of residential energy storage systems. Our first option offers either wall-mounted or stand-mounted batteries with capacities of 5.12kWh and 10.24kWh, typically compatible with inverters ranging from 3KW to 7KW. You have the flexibility to choose your preferred inverter brand, or alternatively, you can opt to purchase home batteries separately.
Additionally, we provide an all-in-one stack system. Bonnen has developed both low-voltage and high-voltage stack systems, allowing buyers to select the desired voltage and power. The modular design of the high-voltage battery system enables stacking of 3 to 7 battery modules, with capacities ranging from 15.36 KWH to 35.84 KWH and voltages from 153.6V to 358.4V. This system is equipped with an output inverter rated between 8KW to 12KW.


Q: What does a bonnen home energy storage battery do?
A: A Bonnen Home Energy Storage System (HESS) serves multiple purposes. It stores solar energy generated during the day for nighttime use, ensuring continuous power supply. Additionally, it acts as a backup power source during grid outages. Depending on your location and local electricity rates, the home battery can potentially save you money by allowing you to shift energy consumption from high-rate to low-rate periods. Lastly, it empowers you to take control of your energy usage and achieve self-sufficiency from the grid.

Q: Can I determine the charging priorities for my home energy storage battery?
A: Yes, you have the option to set charging priorities based on your preferences:
Self-Powered: Utilize the stored energy from your solar system to power your home after sunset.
Backup Only: Reserve all the energy in your home battery for emergency backup power during periods of low or no sunlight.
Balanced Time-Based Control: Power your home after sunset while avoiding costly on-peak electricity rates by utilizing the electricity stored in your solar system.


Q: Is solar panel installation required to use the Bonnen home energy storage system?
A: No, it is not necessary to have PV/solar panels to operate the Bonnen Home Energy Storage System. The home energy storage battery, also known as Powerwall, can be charged using AC power from the grid or a generator. Bonnen offers an all-in-one package that includes household batteries and inverter systems, with the option to include solar photovoltaic systems upon request. Solar panels can be used for load transfer or as a standby power supply, but they are not mandatory for the operation of the system.


Q: Where should I install the home battery energy storage?
A: Typically, the home battery energy storage is installed either outdoors or in a utility room such as a garage or basement. Factors to consider include heat dissipation, ventilation requirements, avoiding direct sunlight exposure, and protection against water exposure.


Q: How does a home battery connect to my home?
A: Prior to connecting a battery to the grid, it's important to install a separate AC breaker between the inverter and the AC input power source. This ensures that the inverter can be safely disconnected during maintenance and is fully protected from overcurrent. For hybrid-coupled homes, before making connections to the Grid, Load, and Gen ports, ensure that the AC breaker or disconnector is turned off.


Q: What's the difference between single-phase and three-phase electricity?
A: Single-phase electricity, typically found in households, operates at either 230 or 240 volts, while three-phase electricity is commonly used in commercial and industrial settings and operates at either 400 or 415 volts. One notable distinction between single-phase and three-phase electricity is the power transmission capacity. Three-phase electricity can transmit more power than single-phase electricity, making it suitable for high-powered applications. Additionally, three-phase electricity tends to experience fewer power fluctuations compared to single-phase electricity.


Q: Which is better for my home solar system: single-phase or three-phase?
A: Single-phase systems are typically preferred for residential homes, whereas three-phase systems are commonly used in commercial and industrial environments. If you're uncertain about the phase of your system, you can usually locate this information on your electrical panel.


Q: How much power do I need for my home battery energy storage?
A: We recommend selecting only essential appliances to be connected to the battery, such as a refrigerator, a few phone charging sockets, lights, and the wifi system. During a complete blackout, a typical 10 kWh battery can provide power for approximately 10 to 12 hours, depending on the load it is supporting. For instance, a 10 kWh battery can run a refrigerator for 14 hours, a television for 130 hours, or a single LED light bulb for 1,000 hours. Therefore, many households opt for a battery with a storage capacity of 10 kilowatt-hours. Before purchasing a battery storage system, it is crucial to discuss your requirements with our system designer.


Q: How long does a home energy storage battery last on one charge?
A: The duration of a home energy storage battery's charge depends on your electricity usage. The more household appliances in use, the shorter the battery's lifespan on a single charge. For example, with basic consumption and lighting, a battery may last approximately 12 hours. Bonnen engineers will design and calculate the battery capacity based on your historical electricity consumption data.


Q: How long will it take to fully charge my home energy storage battery?
A: The time it takes to fully charge your home energy storage battery depends on various factors such as sunlight duration, brightness, shading, outside temperature, etc.


Q: Does my home energy storage system automatically switch on during grid failure?
A: Yes, the Bonnen Home Energy Storage System will automatically switch to battery power in the event of a grid failure.


Q: How long do batteries last?
A: Lithium-ion batteries typically endure around 6000 cycles (charges/discharges) at an 80 percent discharge rate, translating to an expected lifespan of over 10 years for high-performance systems if cycled once per day. Bonnen LiFePO4 batteries are designed to last over 15 years.


Q: What is the minimum order quantity (MOQ) for bonnen?
A: In fact, there is no minimum order quantity for Bonnen home energy storage systems. Bonnen welcomes distributors, resellers, PV installers, and system contractors as its target customers. Even a single sample order is welcomed. Let Bonnen assist in expanding the ESS market and enhancing your profitability!
